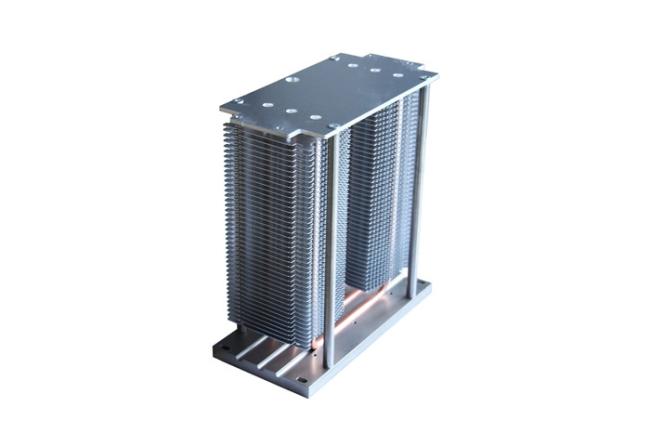

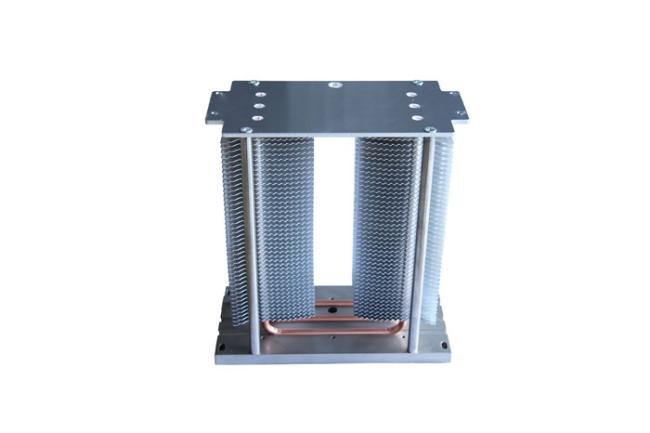

Passive small size Landscape Lamp Stacked Aluminum Fin Copper Heat Pipe Heat Sink
Key Specifications/Special Features
Application:Landscape lamp heat dissipation
Material:Al 6063&C1100&Al 1050&SUS 304
Surface finish:Nickel plating&Passivation
Shape:Square,round,flat according to customized
Overall size:181*89*196
Processing technique:
1.Aluminum fins: progressive die stamping
2.Aluminum base: extrusion + CNC machining
3.Copper tube forming: automatic tube bending+ burn into tip ends
4.SUS 304 pipe:Forming the thread
5.Aluminum base nickel plated, copper tube passivate (insulation, oxidation and corrosion resistance)
6.Assembly: automatic fin wearing/assembly, then fixed by overflow soldering and screw/rivet combination
7.Quality check
8.Packing and shipping
| Overall dimension | L181*W89*H196mm |
| Fin dimension | 55*50mm |
| Aluminum fin thickness | 0.5mm |
| Fin quantity per row | 42pcs |
| Copper tube | 6mm in diameter |
| Copper tube quantity | 3pcs |
| SUS pipe | 4pcs |
Advantages:
1.Professional research and design team, strong and automatic equipment: progressive stamping, automatic tube bending machine, automatic fin wearing machining
2.Strict quality control in each process and finish product quality control
3.Short delivery lead time: 15-30 days
4.Optional for OEM or ODM
5.Comprehensive after-sale service, quick responses for daily communication
