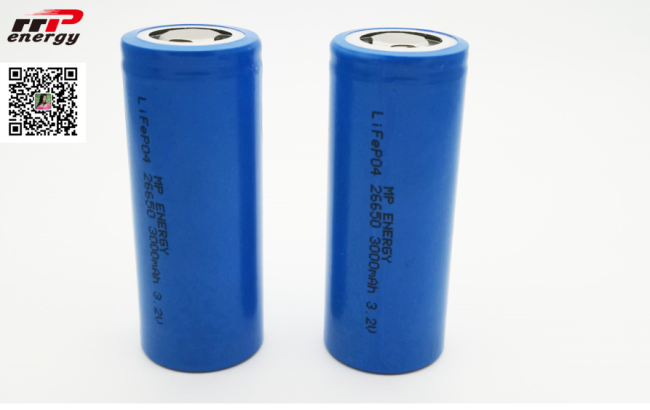

26650 3000mAh Lithium LiFePo4 Battery 3.2V 25000 Cycles High Discharge Rate
3.2V 26650 3000mAh LiFePo4 Battery cylindrical lithium battery
Green energy with safety design support 3C discharge rate
stable high discharge rate performance designed for Ebike ,power tools ,medical deveice
long cycle life more than 2000 cycles and 100% in house Lab quality testing
Accept customized battery pack with PCM ,NTC and wire ,connector ,plug
MSDS UN38.3 IEC testing report can support the air sea and courier delivery service
Dangerous Cargo Certificate and DG HK certificate are available to support DG Cargo delivery .
26650 3.2V 3000mAh LiFePo4 Battery Specification :
| 26650 3.2V 3000mAh | Specification | Remarks | |
| Nominal Capacity | 3000mAh | 0.2 C5A Discharge | |
| Nominal Voltage | 3.2V | ||
| Discharge Cut-off Voltage | 2.0V | 0.2 C5A Discharge | |
| Charge Limited Voltage | 3.65±0.03V | 0℃～45℃ | |
| Standard Charge Current | 0.2 C5A | 0℃～45℃ | |
| Standard Discharge Current | 0.2 C5A | -10℃~ +60℃ | |
| Rapid Charge Current | 0.5C5A | 0℃～45℃ | |
| Rapid Discharge Current | 0.5C5A | -10℃~ +60℃ | |
| Max. Charge Current | 3C5A | Limited Voltage2.0V | |
| Internal Iedance | ≤30mΩ | At AC 1kHz | |
| Weight | About.83.0g±1g | ||
| Storage Teerature Range | ≤ one month | -20~ 45℃ | Ex-factory Voltage3.3~3.45V |
| ≤ three months | -20~ 35℃ | ||
| ≤ a year | -20~ 25℃ | ||
32650 3.2V 3000mAh cylindrical LIFEPO4 Battery Cell Drawing :

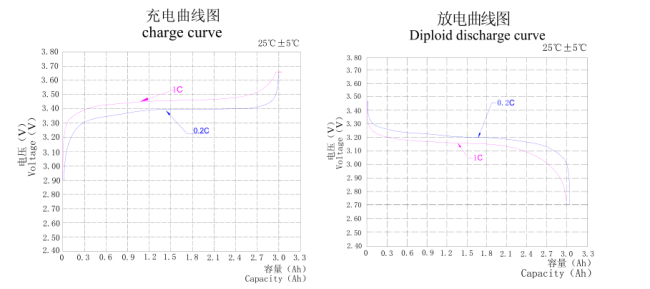

LiFePo4 Battery 3.2V 32650 3000mAh charge and discharge curve :
More LiFePo4 3.2V battery models info. ,contact MaxPower Lucy directly as below :
