12.8V 24.5Ah 22AH 16Ah Golf Trolley Lithium Battery UN38.3
Lithium Golf trolley battery pack 12V 16Ah 22Ah 24.5Ah long cycle life
Original lithium battery long life desigh and deep cycle more than 2000 cycles
T-bar connector and Golf trolley battery bag included to be full set package
Customized design with build in BMS and standard battery house and case
Stable discharge and charge function with over 2 years quality guarantee
OQC report and full age testing data offered before battery delivery
MSDS UN38.3 and DG license support air sea and courier service
Golf Cart LiFePo4 battery pack Golf trolley battery pack 12V 22Ah 24.5Ah Specification :
| 12V 22Ah golf trolley LiFePo4 Battery | Long life golf lithium battery Specification |
| LiFePo4 Battery Manufacture | MaxPower Industrial Co.,Ltd |
| H.S. Code | 850600090 |
| Normal Capacity | 22Ah 24.5AH |
| Normal Voltage | 12.8V |
| Energy | 281.6wh 313.6wh |
| Dimension | (168±1)mm *(128±1)mm *(103±1)mm |
| Internal Resistance | Less than 40mOhms |
| Charging Voltage | 14.6V |
| Charging Method | CC-CV(Constant voltage with limited current ) |
| Weight | 2KG (12.8V 22Ah ) 3KG(12.8V 24.5AH) |
| Charge current | less than 5A |
| Continuous discharge Current | 16A |
| Discharge Cut Off Voltage | 10.0V |
| passive protection function | over charge Protection ,over discharge protection ,teerature and balance function |
| Operation Teerature | -20-60 degree |
| Quality Guarantee | Two years |

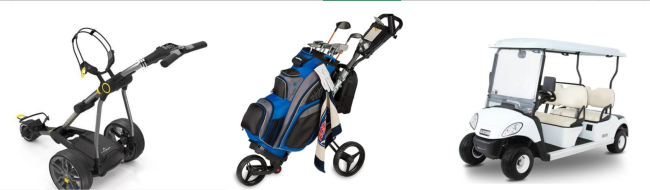

| Application | Golf Trolley ,golf car ,Storage system ,RV, ESS,Golf Cart Battery, |
| Solar System battery , EV ,EBIKE UPS,RV Caer ,marine ,overland/Van,golf cart ,lighting | |
| Sale lead time | 6-8 working days |
| Mass Production lead time | 10-15 working days |

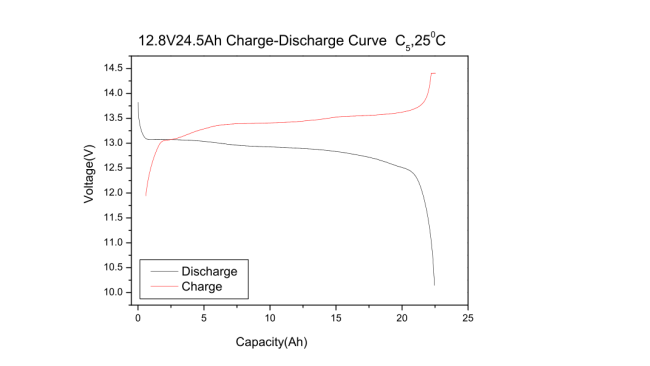

Golf trolley Lithium battery charge and discharge curve :

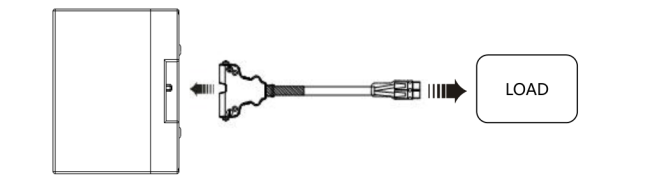

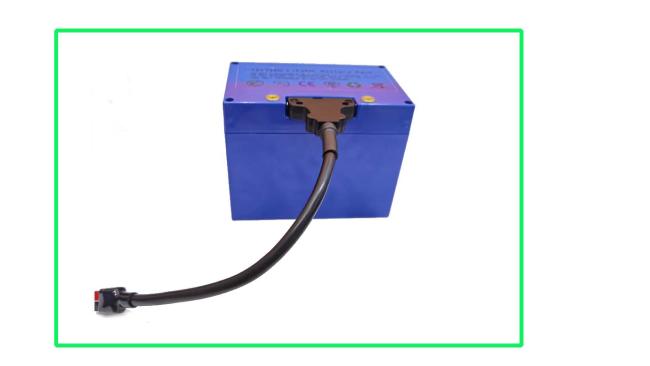

The battery pack Discharge terminal is T-anderson connectors or T aviation plug ect.
More customized battery pack and Lithium battery models, contact MaxPower Lucy directly for data sheet
and Battery solution.
