Weight 10.1kg High Pressure Pedal Style Transimission Line Stringing Tools Hydraulic Pedal Pump Reservoir Capacity 800cc
High Pressure Pedal Style Transimission Line Stringing Tools Hydraulic Pedal Pump
Quick details:
1.Transimission line stringing tools
2.Hydraulic Pedal Pump
3.Pressure Rating: 700/10000 kgf/cm^2/psi
4.Oil delivery(cc/stroke): low:9.8;high:1.9
5.Reservoir Capacity:800cc
6.Size: 520*140*170mm
7.weight:10.1kg
8.Boyu Brand
Description:
- Pump is designed in two stages of high and low speed for quick oil output. Even if lack of electric power, operation could be carried conveniently. It is the same as the electric pump in any working pressure and function.
- Pedal operation. The operator could work while hands griping tool or object.
- Pressure could be stopped in middle. Inner designed high pressure sately unit project hydraulic vale.
- Wide hydraulic pump base for fixing frame could improve stability of operation at work.
- Oil pipe fitted with quick coupling could be ordered in any length. It could be fitted with pressure meter (to be ordered).
- Oil pipe coupling fitted with pt3/8” thread.
Specification:
| Model | Max pressure | Delivery(cm^3/cycle) | Capacity | Mass without oil | Dimensions(l*b*h) | |
| (bar) | 1st stage | 2nd stage | (cc) | (Kg) | (mm) | |
| TYCFP001 | 700 | 9.8 | 1.9 | 800 | 10.1 | 520*140*170 |

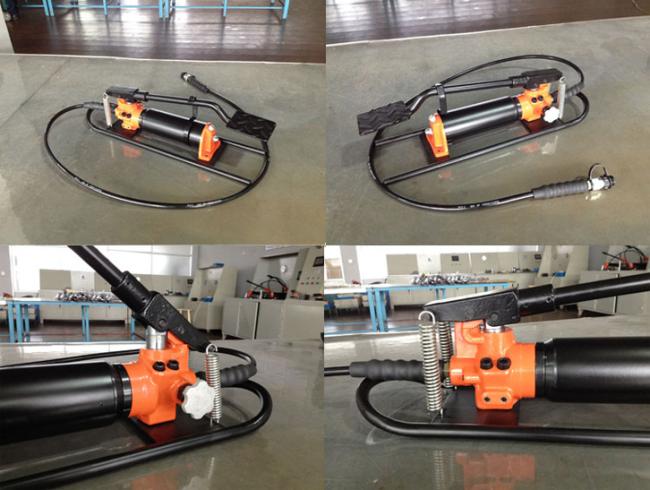

More pictures of the Hydraulic Pedal Pump:
Company instruction:
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Transmission line stringing equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
