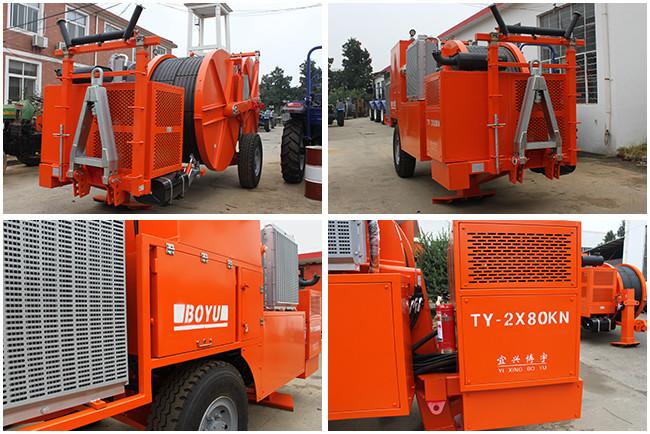

Characteristics

1. Bull-wheel diameter: 1850mm
2. Groove number: 2x6
3. Max conductor diameter: 48.75mm
4. Total weight: 10000kg
5. Overall dimension (length*width*height):5520×2280×2850mm

Performance

1. Max tension: 2x100kN / 1x200kN
2. Rated tension: 2x80kN / 1x160kN
3. Speed at max tension: 2.5km/h
4. Max feeding speed: 5km/h
5. Pull at max speed: 2x40kN/1x80kN
6. Max reverse pulling force: 2x40kN/1x80kN
7. Max reverse pulling speed: 3km/h

Main configuration

1. Engine: Cummins
2. Hydraulic pump: German Rexroth/Dnish Danfoss
3. Main motor:German Rexroth/French Leduc
4. Speed reducer: German Rexroth
5. Hydraulic meter: German
6. Operating handle: German Rexroth

Engine

1. Diesel 97kw(130hp)
2. Cooling system water
3. Electrical system 24V

Configuration

1. 2 negative self-acting hydraulic brakes
2. 2 hydraulic dynamometers
3. Hydraulic oil cooling system
4. 2 digital meter counters
5. 2 digital speed meters
6. Control instruments for hydraulic system and diesel engine
7. Rigid axle for towing at max speed of 30km/h with mechanical parking brake
8. Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
9. Grounding connection point

Hydraulic Transmission

1. The machine can realize step less speed.
2. The machine is provided with tension presetting system.

Additional Devices

1. Lighting system for the trailer
2. 2 hydraulic rope/conductor clamp (extra charge)
3. Swivel guide rope roller
4. Trailer for towing at max speed of 30 km/h
5. Digital speed and meter counter
6. Air brake system for the trailer
