Diesel 77kw 103hp Hydraulic Tensioner Max Continuous Tension 2x50/1x100kN
Price:
Negotiable
MOQ:
1set
Delivery Time:
15~25 days
Brand:
Boyu
Product Description
Tension Stringing Equipment Diesel 77kw(103hp) Hydraulic Tensioner Max Continuous Tension 2x50/1x100kN

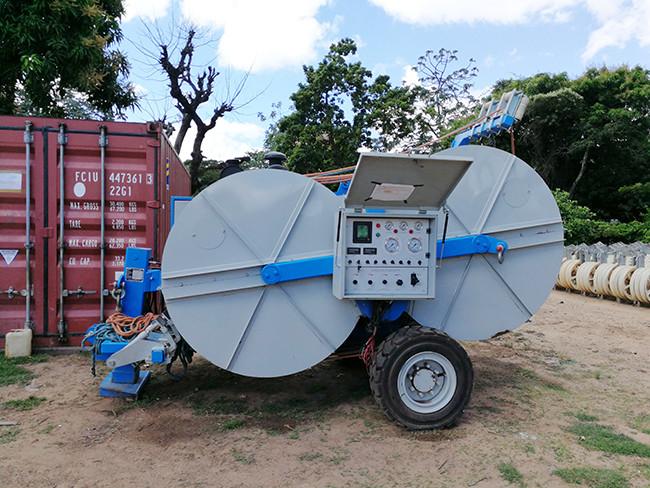

TY2x50 Hydraulic Tensioner
- The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
- Model: TY2x50
- Max intermittent tension: 2x55/1x110kN
- Max continuous tension: 2x50/1x100kN
- Speed at max tension: 2.5km/h
- Max speed: 5km/h
- Tension at max speed: 2x25/1x50kN
- Max reverse pulling force: 2x45/1x90kN
- Max reverse pulling speed: 5km/h
Engine
- Diesel: 77kw(103hp)
- Cooling system: water
- Electrical system: 24V
Characteristics
- Bull-wheel diameter: 1300/1500mm
- Max conductor diameter: 40mm
- Groove number: 2x5
- Total weight: 6000kg
- Overall dimension: 4700x2300x2700mm
Main configuration
- Engine Cummins
- Hydraulic pump German Rexroth/Dnish Danfoss
- Main motor German Rexroth/French Leduc
- Speed reducer German Rexroth
- Hydraulic meter German
- Operating handle German Rexroth
