Ultrasonic Sealing High Speed Nonwoven Carry Bag / Shoes Bag / D-Cut Bag Making Machine

Ultrasonic Sealing High Speed Nonwoven Carry Bag / Shoes Bag / D-Cut Bag Making Machine

Bags can make:

1-flat bag(sealing in two side or with guesset,both ok)

2-T-shirt bag

3-flat bag with handle making

4-shoes bag

Main Parameter:

Machinery Advantage:

1. Ultrasonic device to seal bags in good quality
2. Computer control, automatic feeding, automatic counting, automatic stopping.
3. Easy to operate and strong sealing effective

4. Photocell to track the color
5. Equipped with servo motor
6. Equipped auto pneumatic punching device

7.Equipped with tension control device.

8. Machine has got CE Certification, SGS Certification, company has obation ISO9001:2008 certification

Machinery Device:
1.One set computer with touch-screen system.
2. One the programmable controller.
3. Six sets of ultrasonic system.
4. Traction inverter to control the main motor

5. Micro-motor four.
6. Two sets of step motors.

7. High quality ultrsonic sealing device from Germany to make sure the bag qulaity

Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.


Machinery Features:

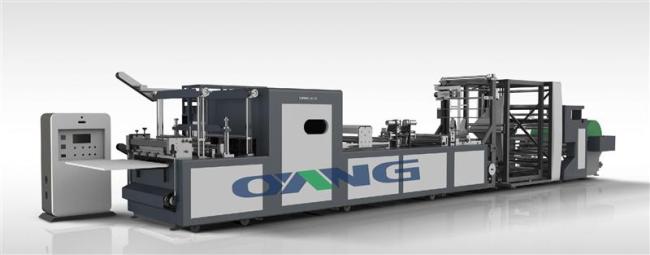

ONL-XC700 Model full automatic nonwoven bag making machine with handle online price is the newest and lastest product we reseached , it can sealing the bag handle automatic, no need sepearate handle sealing machine, the sped is fast, speed can reach 60-100pcs/min, it's an idea equipment to make the non woven sealing bag.
