Product Description

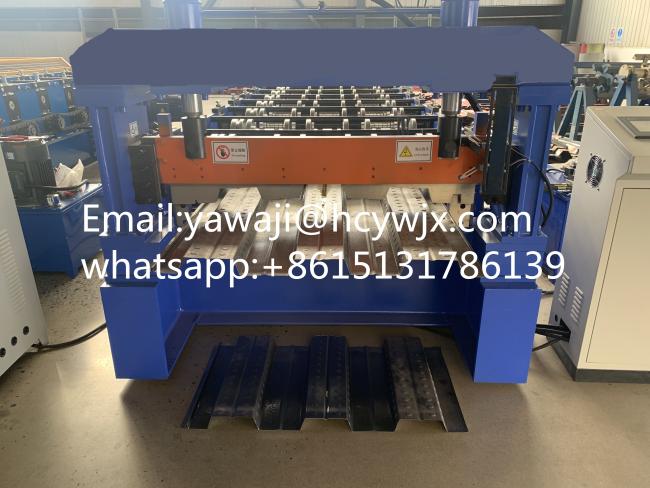

Equipped with advanced CNC systems and precision-machined forming molds, the dimensional tolerance of the floor decking can be accurately controlled to ensure that the wave height, spacing and overall flatness of each floor decking meet strict industry standards. The floor decking produced has high dimensional accuracy and tight splicing, which effectively improves the quality and efficiency of construction.

Main Technical Parameters

Working Flow

Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

his part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 5T

Inner diameter: 470-530mm

(adjustable according to demand.)

In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works.

The hydraulic tank use 46# hydraulic oil.

Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.

The unit length of the targeted sheet and quantity can be set in the touchscreen.

The system is simple and easy to operate.

Output Table

This part is used to collect the formed products.

The bracket is equipped with rollers to facilitate the product forwarding without being scratched.

Feeding Table

Guide the coil come into the correct position and passed to the roll forming machine.

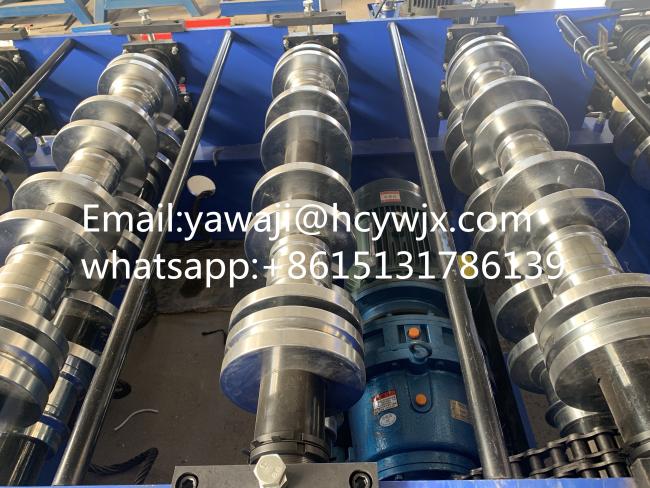

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.

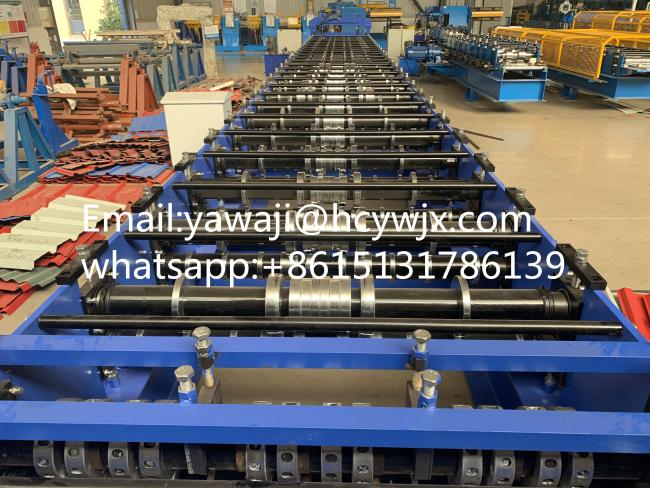

The automated production process is adopted, from unwinding, leveling, forming to cutting of the plate, the whole process is completed in one go, with fast production speed and high production capacity. Compared with the traditional production method, the production cycle is greatly shortened, which can meet the large demand for floor decking in large-scale construction projects.
