Hard Treatment Wall Panel Roll Forming Machine with Color steel plate

Color Sheet Profiles Roll Forming Machine, Color Coated Roof Panel Making Machine

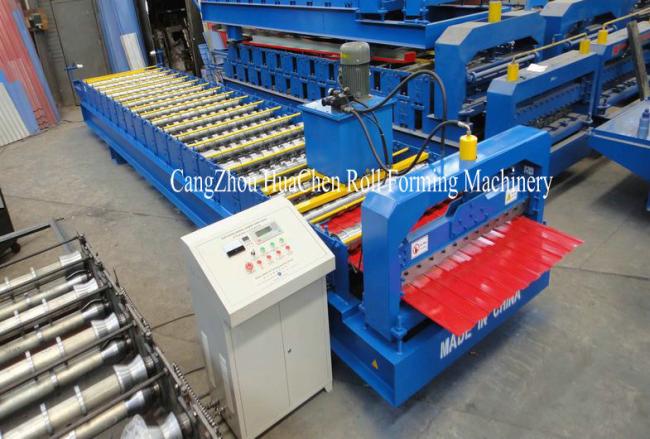

1.Working Flow: Roller Hard Treatment IBR Metal Wall Panel Roll Forming Machine

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting

Quick Detail: Roller Hard Treatment IBR Metal Wall Panel Roll Forming Machine

1. Suitable to process: Color steel plate

2. Width of the plate:1250mm

3. Rollers: 18 rows

4. Dimensions: 8.6*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel (plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Description: Roller Hard Treatment IBR Metal Wall Panel Roll Forming Machine

Wall Panel Roll Forming Machine Main parameter

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Application

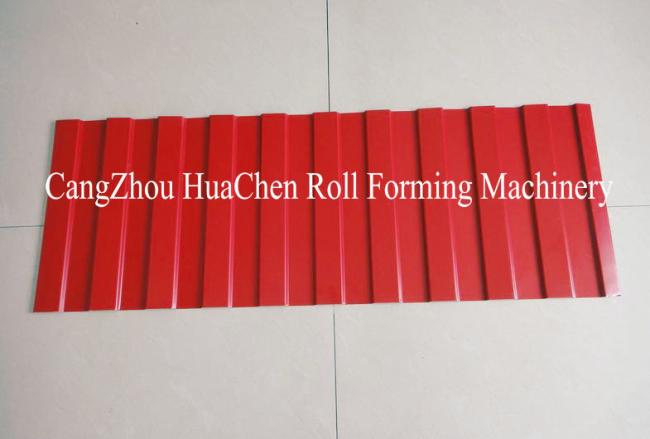

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1.ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate
