13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed
Manual decoiler → Feeding material into machine → Roll forming machine → Measure length → Hydraulic cutting → Finished Products
| Parameter | Specification |
|---|---|
| Material Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1250mm |
| Roller Stations | 13 Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15-20m/min |
| Total Power | 5.5+5.5KW |
| Voltage | 380V 50Hz 3Phases (Can be customized) |

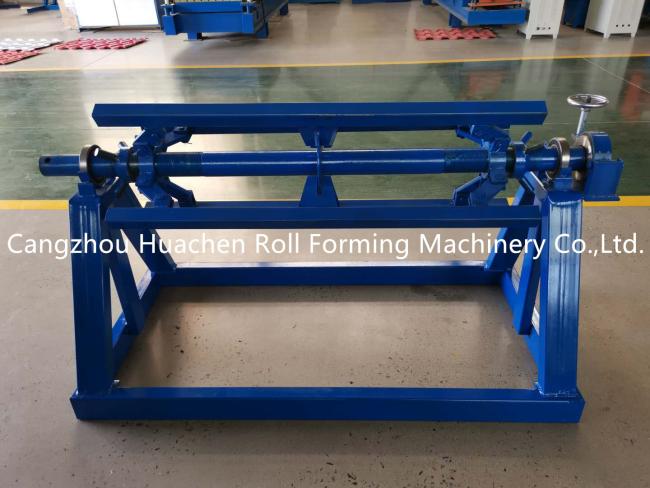

This part is used to support coil and make the coil in a rotary way.
- Bearing capacity: 5T
- Inner diameter: 470-530mm (adjustable according to demand)
- Equipped with brake device to prevent machine damage from impact during operation

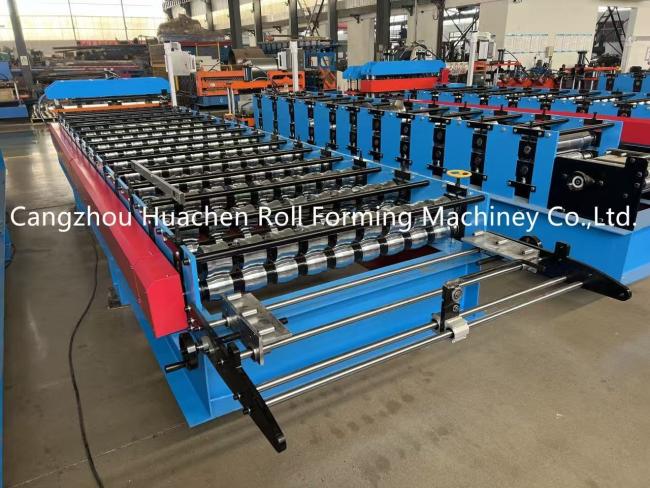

Guides the coil into the correct position and directs it to the roll forming part.
Includes a Hand Pull Cutting Device for convenient pre-cutting when changing color or thickness.

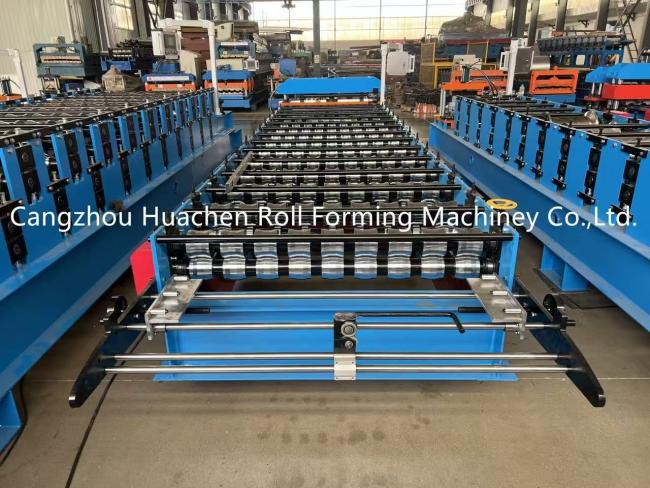

Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard, rust-resistant, and will not leave scratches on the sheet during operation.

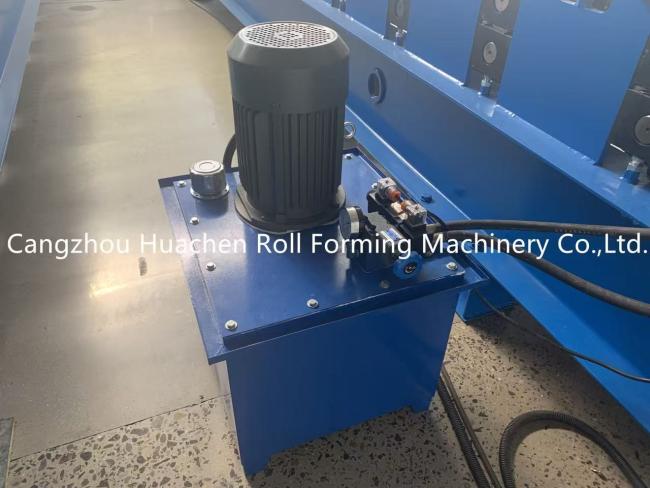

Drives the cutter to perform cutting operations.
- Hydraulic tank uses 46# hydraulic oil
- Equipped with cooling fan for internal circulation cooling
- Prevents oil pump station from being affected by high oil temperature during operation
- Solenoid valve brand: Huade

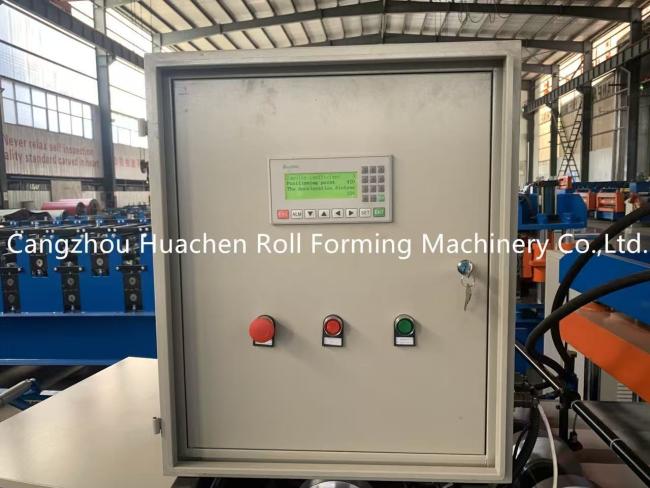

Features automatic and manual operation modes with touchscreen interface.
Allows setting of unit length and quantity for targeted sheet production.
- VFD: Delta
- Circuit breaker: Delixi
- Contactor: Delixi
- Relay: Xinling
- PLC: Delta
- Transformer: Delixi

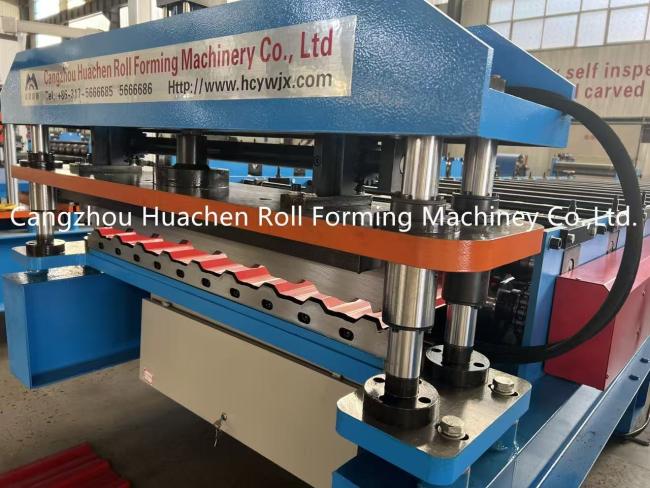

Blade material is CR12 with high strength, excellent hardenability, and superior wear resistance.
Collects the formed products with roller-equipped brackets to facilitate product forwarding without scratching.
| Chains | 2 Sets |
| Solenoid Valve | 1 Set |
| Travel Switch | 2 Sets |
| Open-End Wrenches | 2 Sets |
| Hexagon Wrench | 2 Sets |
| Counter | 1 Set |
| Wrench | 2 Sets |
| Oil Seals | 1 Set |
- Customers can send technical personnel to our factory for quality inspection
- We can send technicians to the buyer's factory for machine installation
Within the one-year period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, replacement parts are available at factory cost.
