Perforated Metal Aluminum Curtain Wall Panel Prismatic Shape Exterior PVDF Spray Painting

Main products

Customized Ceiling, Metal Mesh Panel, Aluminum Ceiling, Metal Ceiling, Hook on Ceiling, Aluminum Decorative Panel, Metal Column, Aluminum Louver, Baffle Ceiling, Wall Cladding

Product details

1. Product type: Curtain Wall Panel
2. Color: RAL color available
3. Dimension: custom made available
4. Surface Treatment: PVDF Powder Spraying
5. Material: Aluminum alloy
6. Thickness: 1.5mm-5mm, custom made available
7. Shape: Prismatic , custom made available
8. Edge profile: Straight edge
9. Perforate: Perforated, custom made available
10. Warranty: 15-20 years



Features

1. Durable, Washable, Scrubbable, Mortar - resistant;

2. Multiple accessibility options;

3. Various standard and wide choice perforations;

4. Excellent fire (&weather) - resistance performance;

5. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;

6. Nice pigment wet ability, no static, non - flammable;

7. Overlong weather resistance, anti - acid, alkali;

8. Resistance, anti - corrosion, 3 to 5 times chemical resistance to common resins;

9. Good self - cleaning, high gloss, abundant colors;

10. Good evenness: it changes the distortion & bending phenomenon on aluminum panel so that it can maintain its super evenness;

11. Panel surface coated with superior weather resistance PVDF finish, and various colors for choice;

12. Certificate: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test etc;

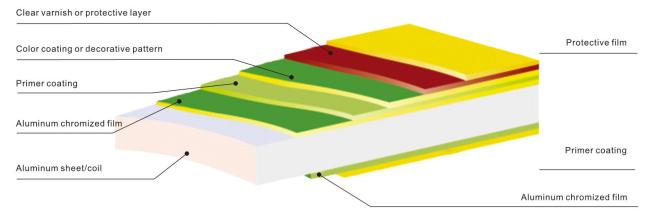

Coating Diagram

PVDF - coated aluminum panel involves alloy panel as base material, which is coated with primer and color finish paint after pretreatment and sprayed with PVDF on surface layer.

The product is fabricated by three - coating & one - baking of PVDF paint. Curing quality is the key for the product. Curing oven of air bridge - based design is adopted, which provides temperature of fluctuation within ±2 ℃. The temperature evenness brings performance of PVDF paint film up to optimal state.

Our company successively introduced LFK numerical control sheet metal equipment, German MILLER argon arc welding machine and Japanese RANSBAG full - automatic coating equipment, all advanced in the world. Adopting high - quality alloy aluminum sheet, German HENKEL pretreatment agent, AKZO - NOBEL, PPG and Valspar PVDF coating, the company strictly observes requirements in ISO9001-2008 quality management system to bring product quality up to the internal control standard AAMA2605-98.

Characteristics

1. Free shape, aesthetics of personality

Different geometric figures can be made by bending, punching and arc rolling subject to user demand, presenting designer’s idea in full.

2. Strong weather resistance, good self - cleaning performance

The PVDF base materials Kynal 500 and Hylar 5000 (content:70%) can effectively resist acid rain, air pollution and ultraviolet ray. Special molecular structure can prevent dust from attachment to surface thus provide good self - cleaning performance.

3. Good fire prevention in accordance with fire - fighting requirements

Acting as ornaments of the product, high - strength aluminum alloy, PVDF paint and stone panel are non - flammable thus fire acceptance can be passed in full.

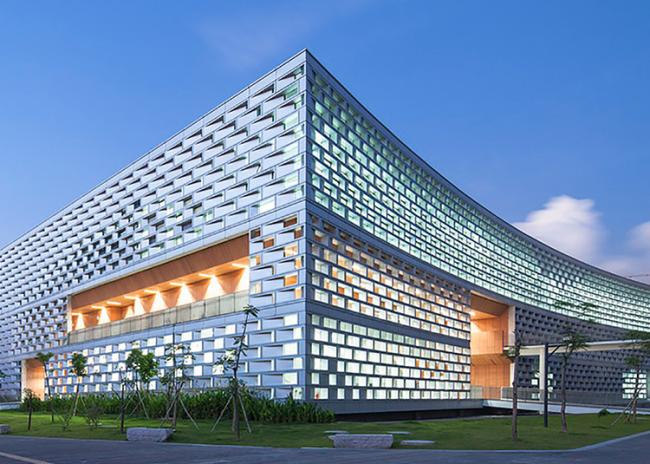

Application

Building exterior wall, anti - corrosion of steel structure, oil platform, ships, chemical pipelines, airplane, bridges and etc.
