Tea Washing Filling Capping Machine Fruit Juice Bottling Plant For PET Bottles , Long Lifetime
Tea Washing Filling Capping Machine for PET Bottles Long Lifetime
Quick Details
| Name | Tea Washing Filling Capping Machine for PET Bottles Long Lifetime |
| Color | Silver gray |
| Capacity | 2000-22000bph |
| Material | Food stage ss304 |
| Suitable bottle | PET bottle |
| Bottle size | 0.3-2.0L |
| Function | Washing-filling-capping 3 in 1 |
| Customized | Acceptable |
| Operation | Easy&Stable |
| Warranty | 1 year for spare parts |
Technical Data:
|
Model |
CGFR8-8-3 |
CGFR16-12-6 |
CGFR18-18-6 |
CGFR24-24-8 |
|
Rinsing Head |
8 |
16 |
18 |
24 |
|
Filling Head |
8 |
12 |
18 |
24 |
|
Capping Head |
3 |
6 |
6 |
8 |
|
RatedCapacity |
2000BPH |
4000BPH |
7000-8000BPH |
10000-12000BPH |
|
Overall Size |
1900*1420*2000mm |
2200*1600*2300mm |
2450*1900*2300mm |
2750*1180*2400mm |
|
Weight(Kg) |
1.5T |
2.2T |
3.0T |
4.0T |
|
Power(KW) |
3.0kw |
3.5kw |
4.0kw |
4.8kw |
|
Rated Voltage |
380V |
380V |
380V |
380V |
Characteristics
1. This hot filling machine are used for green tea, black tea, oolong tea, juice hot filling and sealing
2. It integrates washing,bottling and capping together. The design is scientific and resonable. Its apperance is beautiful. Its operation and maintenance is convenient.
3. The automation is high. It is good equipment for choosing hot drink bottling machine.
4. The machine adopts block bottle-neck hanging work state design and bottling valve rise
drop design. It can meet the requirements of hot bottling of below 95 degrees Celsius.
5. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient,faster and easier.
6. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.

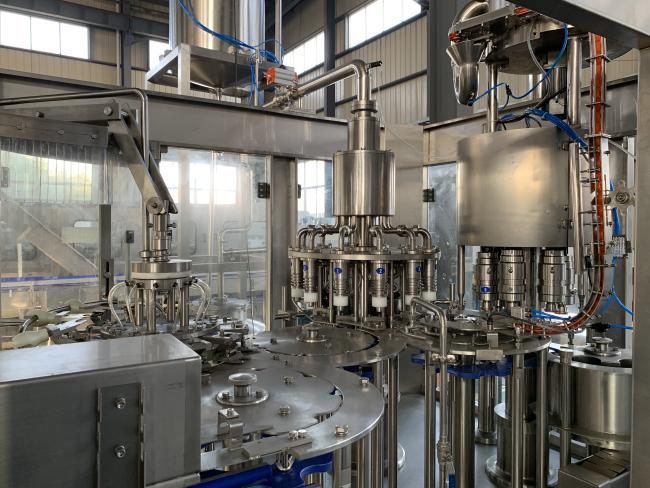

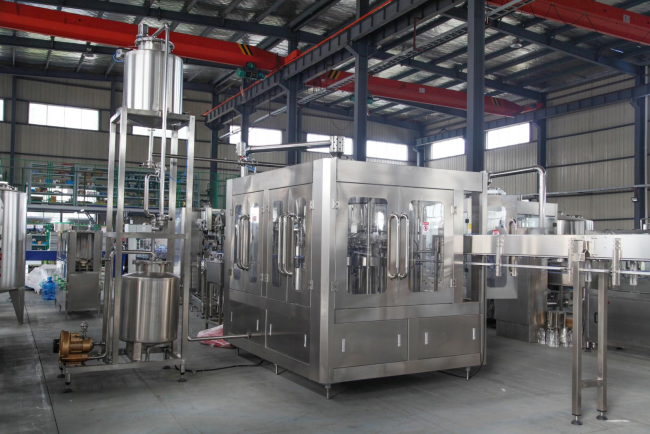

Pictures Show
What service Reliable Machinery Co.,Ltd can offer you ?
• Your inquiry related to our product & price will be replied within 24hours
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• OEM & ODM projects are both available
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions
Warranty and Installation
1. Engineer will be sent to your side as soon as you get all your machines ready.
2. Installment USD60~150/day. Person as allowance
3. Training fee is free for customer’s workers within the installation period
4. We have one year warranty and come with at least one year recommended spare parts
