Carbon Dioxide Gas Beverage Mixing Equipment System SUS 304 Tank For Carbonated Drink
Carbon Dioxide Gas Beverage Mixing System SUS 304 Tank for Carbonated Drink
Description
The machine is applied for carbonation and proportion mixing of various gas beverages (water, syrup, and CO2), such as lemon and Cola. It is the main equipment among the complete equipment of beverage production line (especially the key equipment producing middle-and top-level beverage).
Features
1 Easy operation and regulation:
The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging any parts.
2 Automation with Alarm:
The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and will stop automatically.
3 Enough gas content:
adopts vacuum desoxidation technology at normal-temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating.So its carbon content is especially high
4 Even mixing and accurate proportion:
One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.
Technical Parameter
| Type | RM 1500 | RM 3000 | RM 4000 | RM 5000 | RM 6000 |
| Production Capacity (kg/h) |
1000 - 1500 |
2500 - 3000 |
2000 - 4000 |
2500 - 5000 |
4000 - 6000 |
| Adjust Proportion of Syrup and Water |
1:3 1:10 |
1:3 1:10 |
1:3 1:10 |
1:3 1:10 |
1:3 1:10 |
| Gas Qty | 1.5-2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Cool Water Entry Temperature () |
0 - 5 |
||||
| Working Pressure (MPa) |
0.05 -0.15 |
||||
| Storage Tank Working Pressure (MPa) |
0.2 -0.5 |
||||
| Power (KW) | 1.5 | 3.7 | 4.05 | 5.6 | 6.2 |
| Dimension (mm) |
900 * 700 *2000 |
1720 * 1140 *2100 |
1860 * 1300 *2100 |
1960 * 1400 *2150 |
2020 * 1500 *2200 |
| Weight (kg) | 500 | 1100 | 1300 | 1600 |
1800
|
Our Company
Company Name:Zhangjiagang Reliable Machinery Co.,Ltd
Factory Location:Jiangfeng Road, Zhangjiagang City, Jiangsu Province
Company Website:www.reliable-machine.com

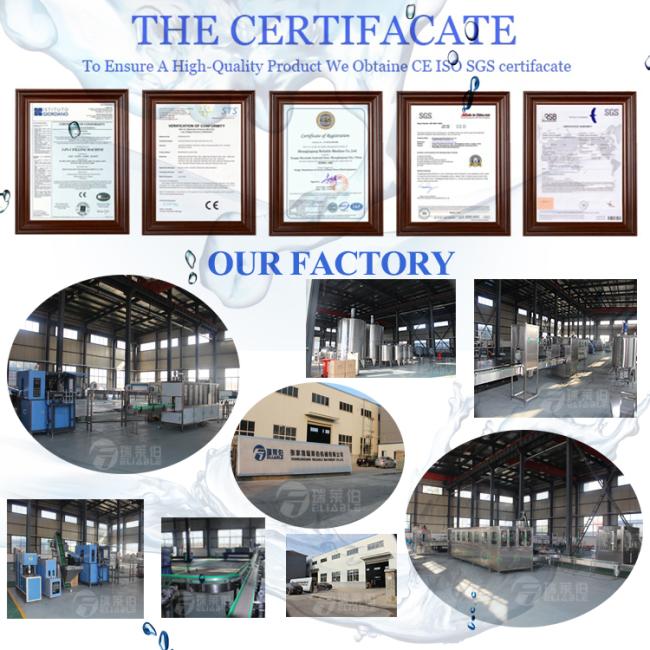

Products Certificates:CE SGS ISO
Experience:Over 10 years experience in machine manufacturing.Over 8 years in exporting
Main products:Water treatment system
Beverage filling machine(mineral/pure water, juice, carbonated water)
PET perform inject and blowing-stretching machine
Complete beverage filling line
Guarantee Time:1 or 2 years Guarantee according to different project.
