Juice Drinks Glass Bottle Filling Machine / Wine Bottling Equipment High Speed
Automatic Glass Bottle Juice Drinks Filling Machine / Wine Bottling Equipment
Product Description
1. It combines flushing, filling and sealing functions on the same machine.
2. It has a scientific and reasonable design, beautiful appearance and complete functions.
3. Easy operation, maintenance and highly automated.
4. The whole machine is controlled by PLC with touch screen, and the amount of beverage in the beverage can can be automatically controlled. When there are no bottles, filling and capping will stop automatically.
Detailed Information
| Name | Glass Bottle Filling Machine for Beer |
| Color | Silver gray |
| Capacity | 5000-6000 BPH (The filling speed is adjustable) |
| Material | Food stage ss304 |
| Suitable bottle | Glass bottle |
| Cap | Metal Crown Cap |
| Bottle size | 200~ 2000ml Glass Bottle |
| Function | Rinsing - filling - capping 3 in 1 |
| Customized | Acceptable |
| Operation | Easy & Stable |
| Warranty | 2 year for spare parts |
Technical Data
| Rinsing heads | 18 Heads |
| Filling heads | 18 Heads |
| Capping heads | 6 Heads |
| Frequency converter | Mitsubishi |
| PLC | SIMENS |
| Main motor | 4kw |
| Rinsing water pressure | 0.06 MPa ＜ P ≤ 0.2 MPa |
| Pressure of Liquid tank | ≤0.45Mpa |
| CO2consumption | 160g/l00L |
Three Parts of Filling Machine

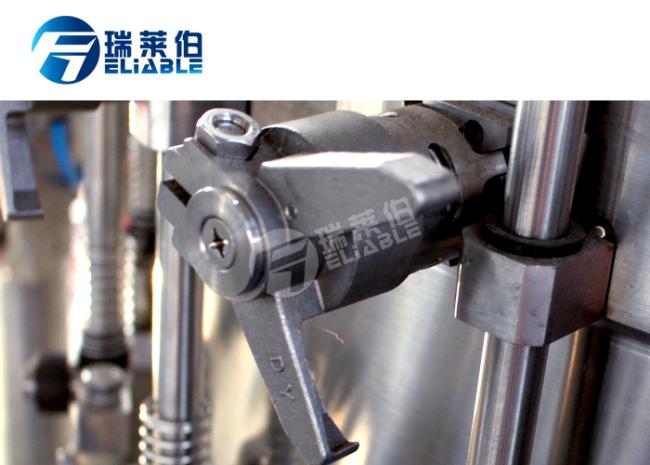

Washing Station
➢ All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
➢ 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
➢ 304 stainless steel washing pumps

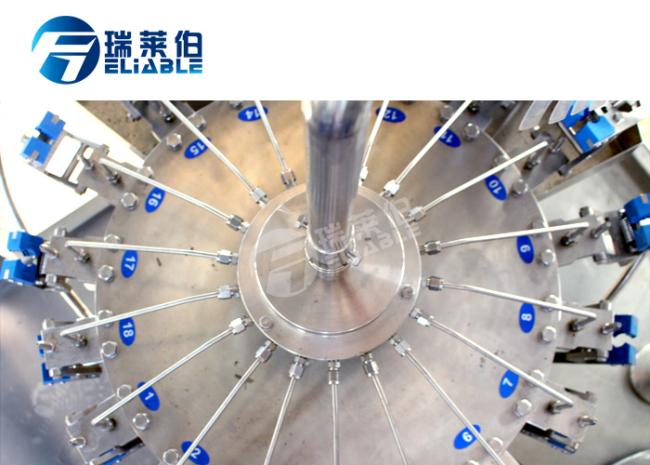

Filling Station
➢ High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
➢ All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
➢ No bottle no filling

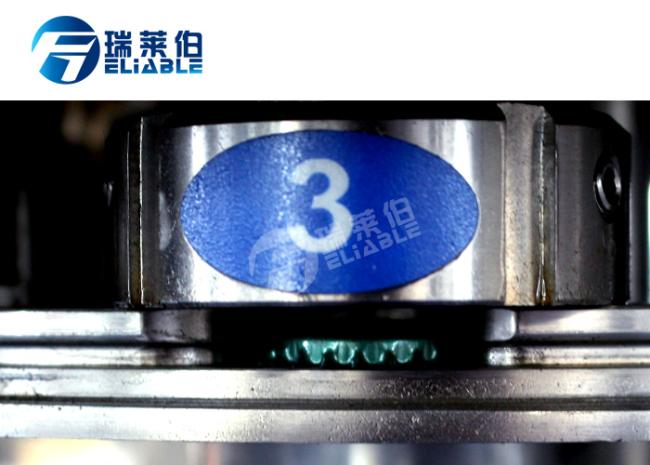

Capping Station
➢ Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
➢ All 304stainless steel construction
➢ No bottle no capping
