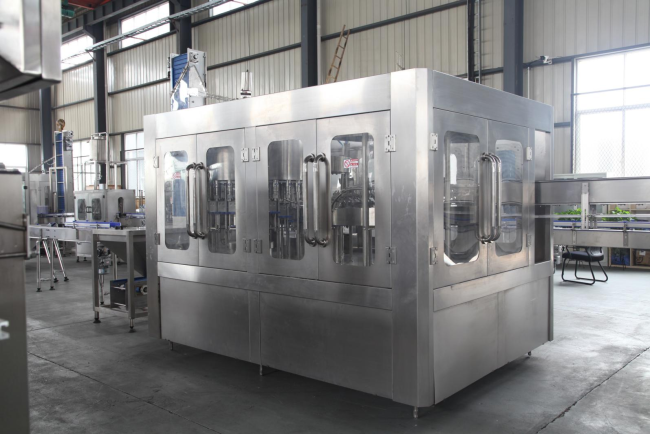

CE Certificated Automatic 6000BPH Pure Water Bottling Equipment

Machine Descriptions:

Our CGFA Series Machine is mainly used for the water filling, adopts the principle of gravity filling. The production capacity of CGFA24-24-8 water filling machine can up to 6000-8000 bottles per hour, it has three parts, the washing, filling and capping part. Each machine element that contacts with the liquid is made of high quality stainless steel. They obtain the advantage of good abrasive resistance, high stability, low failure rate,etc. The quality of the equipments reaches the international advanced level.

Features :

1.  This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.

2. This machine is used to fill water into pet bottle and with screw caps capping function.

3. This machine integrated three function:

1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

Electric Part & Safe Device & Automation:

1. When accident system automatic stop & alarm

2. Emergency switch when accident

3. PLC , Touch-screen Control Panel & inverter

4. Food Grade 304 stainless steel rinsing pump, reliable & sanitary

Machine Detailed Parts:

Rinser Station:

1. All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

2. 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

3. 304 stainless steel washing pumps

Filler Station:

1. High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly& steadily,

2. All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

3. No bottle no filling

Capper station:

1. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2. All 304stainless steel constructio

3. No bottle no capping

Reliable sample service

1. Send you video of the running machine.

2. Welcome to come to visit our factory, see the detail of machines.

3. Well-trained & experienced staff are to answer all your inquiries in English and Chinese

Reliable Customized service

1.Design the machines according your requirements(material, voltage , filling type, various bottles, specially designed device and so on) .

2.Reliable Professional suggestion, as you know, our company is among the best in the beverage machinery industry and our engineer has experience for many years.

3.Design layout for you and offer you advice about machine orientation or based on the factory area you have.

Reliable After-sales service

1. Deliver the machine and provide the B/L on time to make sure you can get the machine quickly. Also send operating manual and instruction.

2. If you need, our professional engineer team will go to your factory to install the machine and train your employee until they can operate the machine well.

3. Regular after-sales calling to remind customers to add the lubricating oil and maintain machine.

4. Service office in Dubai and other countries and will also visit customers’ factories to check the machines.

5. The machines from Reliable Machinery has one year warranty for free and totally five years life-long technical support.

6. 24 hours for engineer response

We sincerely welcome you to contact us if you have any requires about the Machines!
