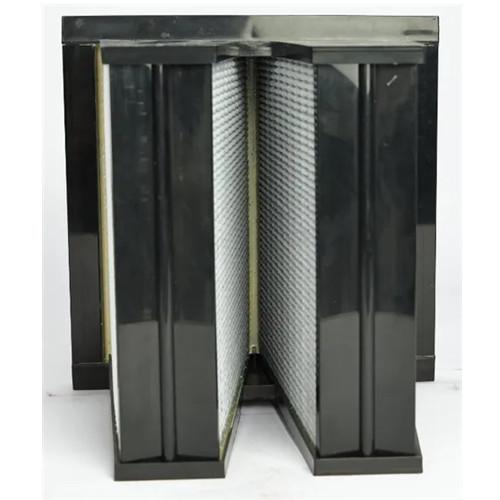

Plastic Frame V Bank Filter For Clean Room Filtration And Performance In Industrial Environments
Product Description:
Application: Applied to large air volume ventilation systems, filtration systems such as pharmaceutical, food, hospitals, clean rooms, etc., it can be used as terminal-filtration of medium and high-efficiency filtration system or the pre-filtration of super-efficient filtration system;
Features: It is a kind of deep loading hih efficiency filter,suitable for permanent or impermanent airflow system.it's constructed to V-type by multiple mini-pleat media,installed in galvanized box or ABS plastic box.Compared with the common filters,it ideally enlarges the filter area,ensuring low pressure loss and low energy consumption to save in the present installation system.
Filter Media:PP Paper,fiberglass paper
Frame:Polypropylene(black/blue),galvanized,aluminum alloy
Specification:
| Type | Dimensions(mm) | Rated Air flow(m³/h) | Structure type | Initial Resistance(Pa) | |||||
| F7 | F9 | H10 | H12 | H13 | H14 | ||||
| HA-HV | 287*592*292 | 1200 | flange type | 80 | 100 | 150 | 220 | 250 | 280 |
| 592*592*292 | 2700 | 80 | 100 | 150 | 220 | 250 | 280 | ||
| 305*610*292 | 1400 | box type | 80 | 100 | 150 | 220 | 250 | 280 | |
| 610*610*292 | 3000 | 80 | 100 | 150 | 220 | 250 | 280 | ||
Applications:
The V Bank Filter is versatile and can be used in a wide range of product application occasions. It is ideal for use in HVAC systems in commercial buildings, hospitals, laboratories, data centers, and industrial facilities. The high filtration efficiency of 99.9% makes it suitable for environments where clean air quality is essential.
Support and Services:
The V Bank Filter product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of technical experts is available to assist with any product-related inquiries, troubleshooting, and maintenance needs. From installation guidance to equipment servicing, we are committed to providing timely and effective support to meet your requirements.
Packing and Shipping:
Product Packaging for V Bank Filter:
The V Bank Filter will be carefully packaged in a sturdy cardboard box to ensure safe delivery.
Shipping Information:
We offer worldwide shipping for the V Bank Filter product. Shipping charges may vary depending on your location and preferred shipping method.
