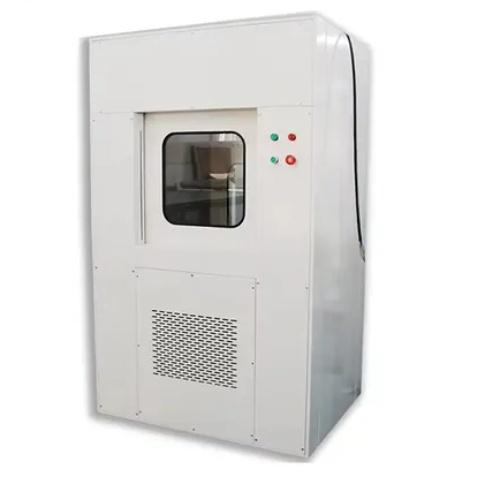

Stainless Steel Or Powder Coated Air Shower Pass Box For Controlled Cleanroom
Product Description:
A customized air shower pass box is an essential piece of equipment in cleanroom environments, designed to prevent contamination by removing particles from the surface of objects before they enter the controlled area. The Air Shower Pass Box with its default 15-second shower time, adjustable from 0 to 99 seconds, ensures thorough cleansing of items before they are passed through.
With a wind speed exceeding 20m/s, this customized air shower pass box guarantees efficient removal of particles and contaminants from the objects being transferred. The high wind speed ensures a reliable and effective cleaning process, making it suitable for various cleanroom applications.
Technical Parameters:
| Product Color | White |
| Ex Dimension | W1700*D1600*H1800MM |
| Customized Size | Any Size Available |
| Nozzels | Stainless Steel |
| Blowing Way | Air Shower Blowing |
| Conveyor Speed | 1-15 Adjustable |
| Wind Speed | More Than 20m/s |
| Internal Size | 750X750X750mm |
| Exhaust Air | 10-15% |
| Treadmark | KEL |
Working principle
The working principle of the air shower transfer window is to use the clean air flow filtered by the high-efficiency filter to be sprayed onto the surface of the items from all directions through the rotatable nozzles, and quickly remove the dust particles adhering to the items with the high-speed air flow. These dust particles are then re-filtered through primary and high-efficiency filters and recycled back to the air shower area, thereby achieving the purification effect. The air velocity at the nozzle outlet can usually reach more than 20 meters per second
