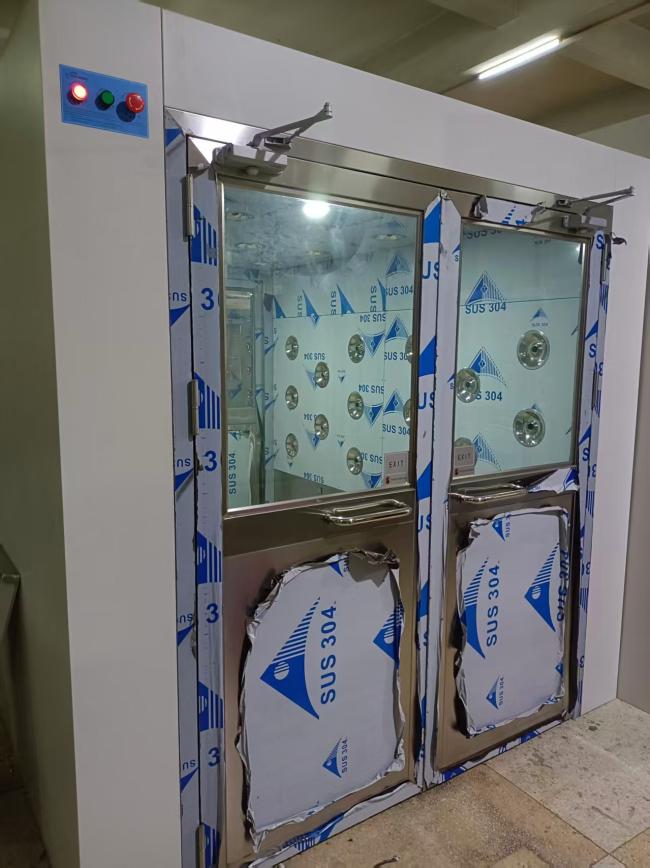

Customizable Size Cleanroom Air Shower Tunnel with High-Velocity Airflow (20-25m/s) for Multi-Person Capacity (50+ Workers)
Price:
Negotiation
MOQ:
1 set
Delivery Time:
7-15 working days
Brand:
K-LING
Product Description
Cleanroom Air Shower Tunnel for Large Scale Workers to Enter and Exit Simultaneously
Product Overview
Stainless steel cleanroom air shower tunnels are specialized contamination control systems designed to serve as a critical barrier between controlled cleanroom environments and non-clean areas. These systems are widely utilized in pharmaceutical, biotechnology, microelectronics, and food processing industries where stringent hygiene standards are mandatory.
Cleanroom Applications
Cleanroom air shower tunnels are used in research laboratories, aerospace component assembly, and precision optics manufacturing, where even tiny particles can compromise experimental results or high-precision equipment performance. Their customizable designs (single-person, multi-person, or material-specific) allow seamless integration into diverse facility layouts, making them a versatile solution for contamination control.
Main Features
- Efficient Contamination Removal: Air showers utilize high-velocity, filtered airflow (typically 20-25m/s) to blow off particulate matter from personnel, materials, or equipment surfaces. The turbulent air dislodges dust, lint, and other contaminants, which are then captured by the system's HEPA/ULPA filters, ensuring only clean air recirculates within the controlled environment.
- Durable & Hygienic Construction: Constructed from stainless steel or coated steel, air showers resist corrosion, are easy to clean, and meet strict hygiene standards. Smooth, seamless surfaces prevent dust accumulation, while sealed joints and gaskets ensure airtightness, making them ideal for industries like pharmaceutical, electronics, and food processing where cleanliness is critical.
- Customizable Configurations: They come in diverse designs to suit different needs, including single-person/multi-person models, single-door/double-door layouts, and integrated options with interlocking systems. Double-door air showers feature electronic or mechanical interlocks that prevent both doors from opening simultaneously, creating an airtight barrier to stop unfiltered air from entering cleanrooms.
Technical Specifications
| Model/Dimensions & Parameters | 1 Person with One Side Blowing | 1 Person with Two Sides Blowing | 2 Persons with Two Sides Blowing | 3 Persons with Two Sides Blowing | 4 Persons with Two Sides Blowing |
|---|---|---|---|---|---|
| Person/Persons per Cycle | 1 | 1 | 2 | 3 | 4 |
| Air Shower Time | 1-99S Adjustable | ||||
| Nozzles | 6 (one side) | 12 (two sides) | 24 (two sides) | 36 (two sides) | 48 (two sides) |
| Nozzle Diameter | φ38mm | ||||
| Spurt Wind Speed | 15-20m/s | ||||
| Filter Efficiency | ≥99.99% @ 0.5 micron | ||||
| Internal Work Area Dimensions W×H×D (mm) | 800×1875×860 | 800×1875×860 | 800×1890×1860 | 800×1890×2360 | 800×1890×2860 |
| External Dimensions (mm) | 1300×2050×1000 | 1600×2050×1000 | 1600×2050×2000 | 1600×2050×2500 | 1600×2050×3000 |
| Power | 3Phase 380V 50Hz | ||||
| Max. Power (w) | 700 | 1400 | 1400 | 1400 | 2800 |
