Hardwall Modular Cleanroom with HEPA Filter Air Filtration System, Fire-Resisting Door, and Double-layer Vacuum Glass Window
Price:
Negotiation
MOQ:
1
Delivery Time:
10 Working Day
Brand:
K-LING
Product Description

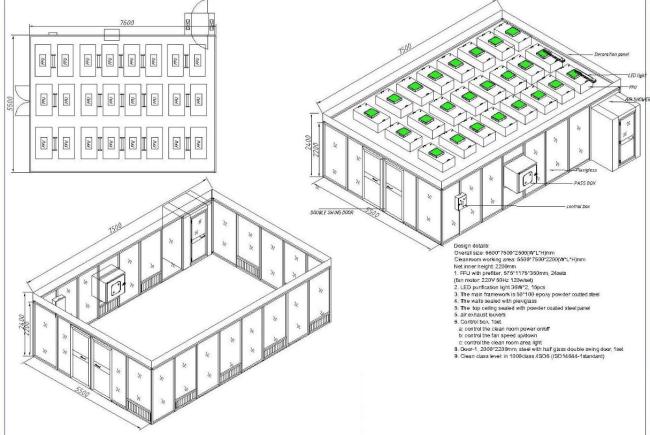

Raised Floor Hardwall Clean Room With HEPA Filter Air Filtration System
Product Overview
Hardwall cleanroom Pressure Differential Management is designed to create positive or negative pressure zones, preventing cross-contamination by controlling airflow direction. Positive pressure keeps contaminants out in sterile areas, while negative pressure contains hazards in bio-labs. This system is vital for infection control in hospitals or containment in chemical handling, using adjustable vents and monitors.
Key Features
- Product Name: Hardwall Clean Room
- Contamination Control: Provides horizontal, contaminant-free laminar flow
- Material Versatility: Frames can be constructed from sprayed steel or custom materials
- Cost Reduction: Lowers annual maintenance costs by approximately 23%
- Standard Compliance: Adheres to ISO 14644-1 and EN 1822 standards
- Negative Pressure Sealing: Utilizes air pressure mechanisms for tight sealing
- Compact Structure: Optimizes space usage with a compact filter design
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Hardwall / Modular Clean Room |
| Noise Level | Less Than 65 DB |
| Purification Light | More Than 300Lux |
| Fan Filter Unit | 1175x1175x350mm |
| Installation | Modular Installation |
| Installation Type | Free Standing Or Wall Mounted |
| Air Filtration System | HEPA Filter And Prefilter |
| Window | Double-layer Vacuum Organic Glass |
| Doors | Fire-Resisting Door With Transparent Window |
| Floor | PVC Anti-static Floor Or Raised Floor |
Industry Applications
- vaccine production, and API processing
- Biotechnology: Cell culture, genetic engineering, and lab research with ISO 5-8 standards
- Electronics: Semiconductor fabrication, PCB assembly, and nanotech under particle control
- Medical Devices: Implant production and surgical tool packaging in ISO 7+ environments
- Aerospace: Precision component assembly for satellites and avionics
