ISO 5 Class 100 Modular Clean Room with Fire Resisting Door and Double Layer Vacuum Glass Window

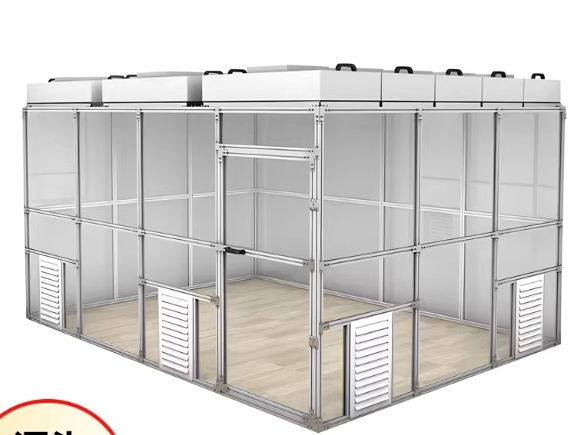

The Hardwall Modular Clean Room is an advanced and highly efficient clean booth solution designed to meet stringent requirements of controlled environments. Engineered to provide superior air quality, easy installation, and robust construction, this product is ideal for industries such as , electronics, biotechnology, and research laboratories.
As a prefabricated cleanroom with modular installation approach, it enables rapid deployment and flexibility in various settings.
One of the standout features is the sophisticated air filtration system equipped with both HEPA filter and prefilter. This system ensures removal of airborne particles, contaminants, and pollutants to maintain a highly purified atmosphere.
The HEPA filter captures particles as small as 0.3 microns with 99.97% efficiency, essential for achieving required cleanliness levels. The prefilter serves as the first line of defense by capturing larger particles, extending the life and efficiency of the HEPA filter.
- Product Name: Softwall Clean Room
- Also known as: Hardwall Cleanroom
- Ceiling: Glass Magnesium Rock Wool Sandwich Panel, 50mm thickness
- Floor Options: PVC Anti-static Floor or Raised Floor
- Air Filtration System: HEPA Filter and Prefilter
- Purification Rank: ISO5 / ISO6 / ISO7 / ISO8
- Type: Module Cleanroom for flexible installation
- Design: Prefabricate Clean Booth for quick setup and efficient use
| Parameter | Specification |
|---|---|
| Installation Type | Free Standing Or Wall Mounted |
| Fan Filter Unit | 1175x1175x350mm |
| Air Filtration System | HEPA Filter And Prefilter |
| Floor | PVC Anti-static Floor Or Raised Floor |
| Ceiling | Glass Magnesium Rock Wool Sandwich Panel 50mm |
| Purification Rank | ISO5 / ISO6 / ISO7 / ISO8 |
| Noise Level | Less Than 65 DB |
| Color | Grey White Sandwich Panel |
| Purification Light | More Than 300Lux |
| Other Name | Hardwall Cleanroom |
- : Sterile manufacturing, vaccine production, and API processing
- Biotechnology: Cell culture, genetic engineering, and lab research with ISO 5-8 standards
- Electronics: Semiconductor fabrication, PCB assembly, and nanotech under particle control
- Medical Devices: Implant production and surgical tool packaging in ISO 7+ environments
- Aerospace: Precision component assembly for satellites and avionics
