Cold - Rolled Steel Plate Intelligent Cleanroom Air Shower System For 1 - 2 Person
Cold-Rolled Steel Plate Intelligent Cleanroom Air Shower System
Application :
Printing Industry: In the printing industry, cleanliness is essential to prevent defects in printed products. Cleanroom air showers are used to remove particles and other contaminants from personnel and equipment before they enter the cleanroom, helping to ensure the highest level of quality in printing.
Description:

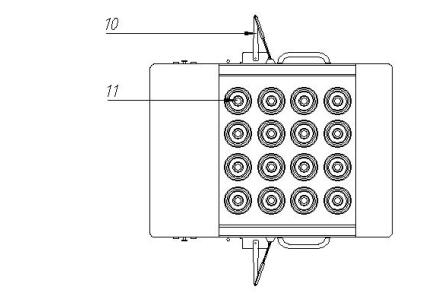

Air Shower for Cleanroom with air shower nozzles
Air shower is a frequently used equipment in clean room.
It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods.
Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.
Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care,
Pharmacy,auto glass and precision parts.
Products Details:
| MODEL | KEL-AS1300P1 | KEL-AS1300P2 | KEL-AS1300P3 | |
|

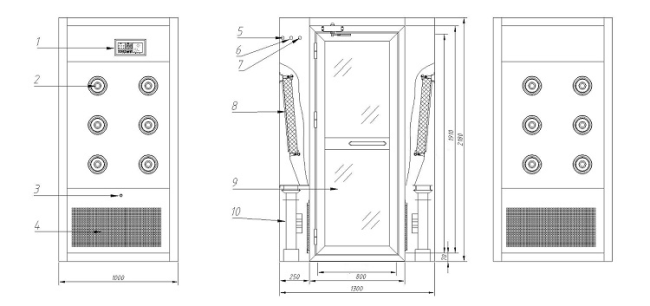

External size (mm) (W*D*H) |
1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
|
Work zone (mm) (W*D*H) |
800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
|
Material (Option) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) |
|||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: with CE remark. |
|||
| The power of fan |
380V/50HZ/0.75KW (2 set) |
380V/50HZ/0.75KW (4 sets) |
380V/50HZ/0.75KW (6sets) |
|
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) |
630X630X80mm (2 sets) |
630X630X80mm (4 sets) |
630X630X80mm (6 sets) |
| Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
| Air velocity | 1000(m3/h) | |||
| Initial resistance(pa) | <180pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weigh | 320kgs | 650kgs | 960kgs | |
FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt.
It is easy to operate with membrane touch switches.
3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.
5,20m/s air velocity can up to 25m/s. professional and fast design, non-standard products.
Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
