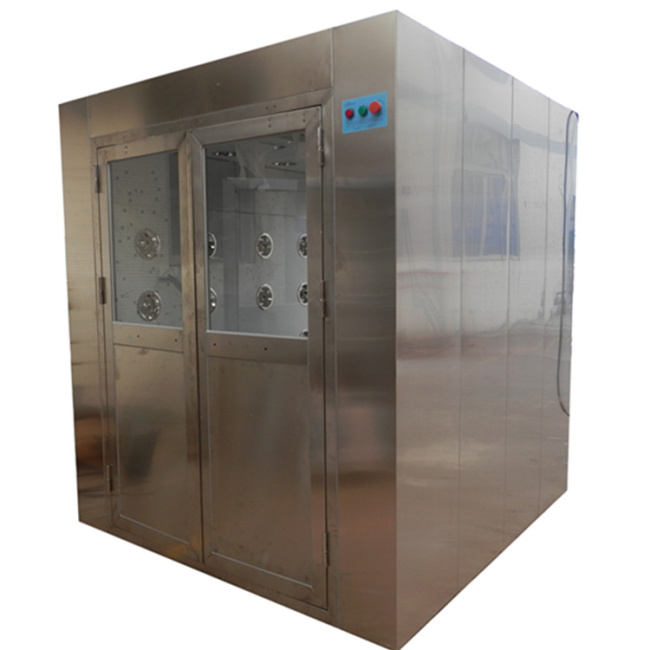

Standard Stainless Steel Vertical Air Shower Room With Top Side Air Flow
Standard Stainless Steel Vertical Air Shower Room With Top Side Air Flow
CUSTOMIZED DESIGN IS AVAILABLE
Applicaiton :
Cosmetics Industry: The cosmetics industry requires an extremely clean environment to ensure the safety and efficacy of cosmetics products. Cleanroom air showers are used to remove particles and other contaminants from personnel and equipment before they enter the cleanroom, helping to ensure the highest level of safety and efficacy in cosmetics manufacturing.
General Trade Information:
Brand: Keling
Model number: KE-AS1400V Series
Material: inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM: Yes
Certificated: CE
Start port: Guangzhou
Delivery time: 8 working days after we get the deposit.
MOQ: 1sets
Country of Original: China
Supply ability: 50 set/one month
Payment term: T/T , L/C , Western union ,
Application: Worker in Clean room
Specifications:
| MODEL | KEL-AS1400V1 | KEL-AS1400V2 | KEL-AS1400V3 | |
|
External size (mm) (WXDXH) |
1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
|
Work zone (mm) (WXDXH) |
790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
|
Material (Option) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304 4: External is steel with power coated. Internal is SUS201 |
|||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Vertical top side blowing with Human voice prompt system. 5: with CE remark. |
|||
| The power of fan |
380V/50HZ/1.1KW (1 set) |
380V/50HZ/1.1KW (2 sets) |
380V/50HZ/1.1KW (1sets) |
|
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
| Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
| Air velocity | 1000m3/h | |||
| Initial resistance(pa) | <220pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weigh | 320kgs | 650kgs | 960kgs | |
Our Services:
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
