Industrial Class 10000 Clean Room For 1 - 6 Person / Air Shower Booth
Industrial Class 10000 Clean Room Air Shower / Booth For 1-6 Person
CUSTOMIZED DESIGN IS AVAILABLE
General Trade Information:
Brand: KELING
Material: inside and outside is stainless steel201 (t=1.2mm)
OEM /ODM: Yes
Certificated: CE and Rosh
Start port: Guangzhou,Shenzhen
Delivery time: 8 working days after we get the deposit.
MOQ: 1 set
Country of Original: China
Supply ability: 30 sets/month
Payment term: T/T , L/C , Western union ,
Products Specifications:
| MODEL | KEL-AS1400V1 | KEL-AS1400V2 | KEL-AS1400V3 | |
|
External size (mm) (WXDXH) |
1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
|
Work zone (mm) (WXDXH) |
790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
|
Material (Optional) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304 4: External is steel with power coated. Internal is SUS201 |
|||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Vertical top side blowing with Human voice prompt system. 5: With CE remark. |
|||
| The power of fan |
380V/50HZ/1.1KW (1 set) |
380V/50HZ/1.1KW (2 sets) |
380V/50HZ/1.1KW (1sets) |
|
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
| Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
| Air velocity | 1000m3/h | |||
| Initial resistance(pa) | <220pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weigh | 320kgs | 650kgs | 960kgs | |
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Company Information:
Our factory with competitive price

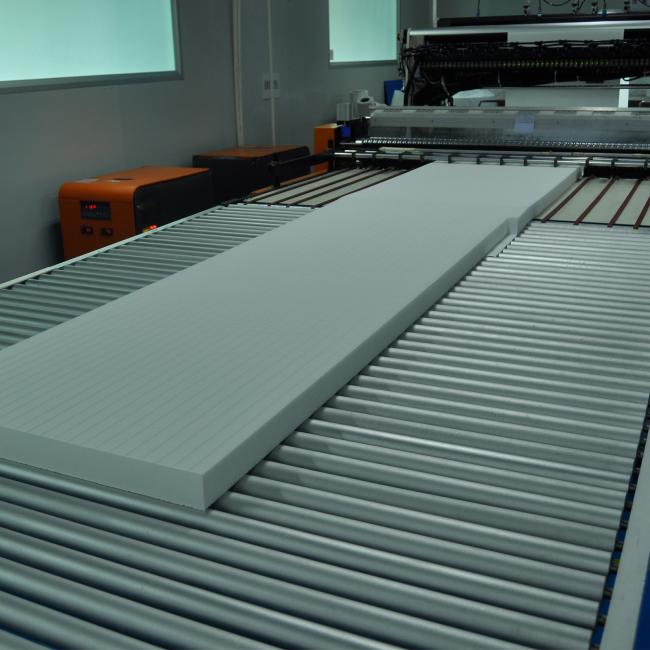

Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
Air shower clean room, stainless steel air shower
