Custom Stainless Steel 304 / 201 Cleanroom Air Shower With Auto Slide Door
Stainless Steel 304/201 Custom Clean Room Air Shower With Auto Slide Door
CUSTOMIZED DESIGN IS AVAILABLE
General Trade Information:
Brand: KELING
Model number: KEL-AS2000P2 Series
Material: inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM: Yes
Certificated: CE and Rosh
Start port: Guangzhou, Shenzhen
Delivery time: 8 working days after we get the deposit.
MOQ: 1sets
Country of Original: China
Supply ability: 30 set/one month
Payment term: T/T , L/C , Western union ,
Application: Worker in Clean room
Air shower clean room, stainless steel air shower
•Completely self-contained, pre-wired, fully equipped Air Shower/Tunnel systems help solve decontamination problems
•Modular design lets you order a system to suit your cleanroom
•HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles
•Solid-state microprocessor panel provides programmable control over access door operation.
•Electromagnetic interlocking doors minimize contamination and automatically release in the event of power failure or when the emergency stop button is pressed
•Energy-efficient LED lighting mounted on the ceiling
•Available in white powder-coated or stainless steel to meet various cleanroom requirements
•Variety of sizes and door configurations
•Economical to operate and easy to maintain
•An ionizing bar is available as an optional accessory
Specifications:
| MODEL | KEL-AS2000P2 | KEL-AS2000P3 | |
|
External size (mm) (W*D*H) |
2000x2000x2200mm | 2000x3000x2200mm | |
|
Work zone (mm) (W*D*H) |
1500x1930x2000mm | 1500x2930x2000mm | |
| Air speed (m/s) | >25m/s | ||
| Door material | Stainless steel frame with half glass or full glass | ||
| Door control system | Auto sliding double door | ||
|
Material (Option) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) |
||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: with CE remark. |
||
| The power of fan | 380V/50HZ/0.75KW(4 sets) | 380V/50HZ/0.75KW (6sets) | |
| Nozzle in stain less steel | 32 pcs | 48pcs | |
| Noise level(dB) | <75dB | ||
| HEPA FILTER | Size(mm) | 630X630X80mm (4 sets) | 630X630X80mm(6 sets) |
| Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||
| Air velocity | 1000(m3/h) | ||
| Initial resistance(pa) | <180pa | ||
| Pre-filter | Size(mm) | 775x380x17 | |
| Efficiency (%) | 75% @ 0.5um | ||
| G3 | |||
| resistance(pa) | <30Pa | ||
| parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P |
| Net power(kw) | 3kw | 4.5 kw | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
| Weigh | 650kgs | 960kgs | |

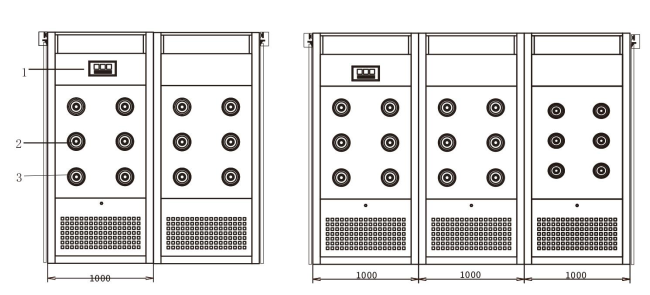

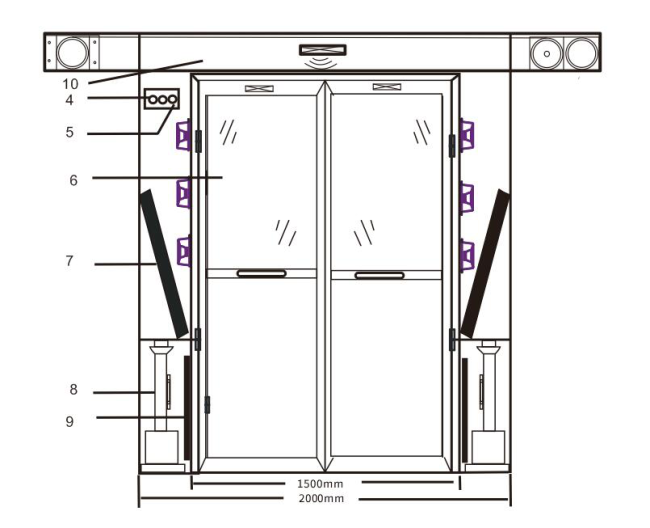

Draw:
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator
4: Power indicator 5: Emergency switch 6: Sliding door
7: HEPA air filter (H13 99.995%@0.3um) 8:Fan
9: Per-filter 10: important door closer 11: purification light
Door opening method:
1:Wireless remote control switch
2: Microwave sensor automatically
3: Non-contact sensor Switch
4: Contact push button Switch
Auto –sliding door Air shower control system procedure:
A: From contaminated zone to Clean room area:
1: once the person or cargo arrive the detection area, the entrance door will be open automatic.
2: when the person or cargo inside of air shower, the door will be closed automatic according setting time.
3: When the person or cargo arrived the air shower sensor area, but door will be interlocking and start the self-clean system.(0-90s)
4: After the self –clean system finished working, the exit door will be open automatic.
5: The person and goods go out of the door, some seconds later the exit door closed automatic.
The air shower procedure will be back standby state.
B: From clean room area to contaminated :
1: once the person or cargo arrive the detection area, the exit door will be open automatic.
2: when the person or cargo inside of air shower, the exit door will be closed automatic according setting time.
3:when the exit door closed , 10s later the entrance door will be open automatic ,
4; the person and cargo go out of the entrance door, the door will be closed within setting time.
