Auto Rolling Door Cleanroom Air Shower With 3 Sides Nozzle For Medical Industrial
Auto Rolling Door Air Shower With 3 Sides Nozzle Cleanroom For Medical Industrial
General Trade Information:
Brand: KELING
Model number: KEL-AS2300P Series
Material: inside and outside is Steel with power coated (t=1.0mm)
OEM /ODM: Yes
Certificated: CE and Rosh
Start port: Guangzhou, Shenzhen
Delivery time: 8 working days after we get the deposit.
MOQ: 1sets
Country of Original: China
Supply ability: 30 set/one month
Payment term: T/T , L/C , Western union ,
Application: Worker in Clean room
Product Features:
High speed Fast -rolling door Air Shower
External Material: Steel with power coated (T=1.0)
Inside Material: Stainless steel304 (t=1.0)
External size:2300*2000*2280mm
Internal size: 1500*2000*1980mm
Sus nozzle: 36pcs
Blowing way: 3 side (left, right and top)
Air speed: >25m/s
Door: Electric Interlocking in both side
Introduce :
Clean Room Air Shower protects cleanroom environment from contamination.
It can enhance cleanroom performance by removing surface contamination from clothing and garments of person.
This model is suitable for 1persona one time. We also have another types which are suitable for 3-4 persons.
Air Shower equipped with pre-filter and HEPA, by double-layers filtration system to ensure high air cleanness level.
Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging,
medical care, Pharmacy,auto glass and precision parts.
Company Information:
Our factory with competitive price
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
Products Parameter:
| MODEL | KEL-AS2300P2 | KEL-AS2300P3 | |||
|
External size (mm) (W*D*H) |
2300x2000x2280mm | 2300x3000x2280mm | |||
|
Work zone (mm) (W*D*H) |
1500x2000x1980mm | 1500x3000x1980mm | |||
| Persons per cycle | One Small Cargo forklift. | One big Cargo forklift. | |||
|
Material (Option) |
1:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 2:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) |
||||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: With CE remark. |
||||
| Door | Automatic High Speed Rolling Door | ||||
| The power of fan |
380V/50HZ/0.75KW (4 set) |
380V/50HZ/0.75KW (6sets) |
|||
| Air flow of fan(m3/h) | 1500 | 1500 | |||
| Fan run (r/min) | 2800 | 2800 | |||
| Nozzle in stain less steel | 36 pcs | 54 pcs | |||
| Wind speed(m/s) | >25m/s | ||||
| Noise level(dB) | <75dB | ||||
| HEPA FILTER | Size(mm) | 630X630X80mm(4 sets) | 630X630X80mm(6 sets) | ||
| Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||||
| Air velocity | 1000(m3/h) | ||||
| Initial resistance(pa) | <180pa | ||||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 | |
| Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | ||
| G3 | G3 | G3 | |||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | ||
| parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P | |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | ||

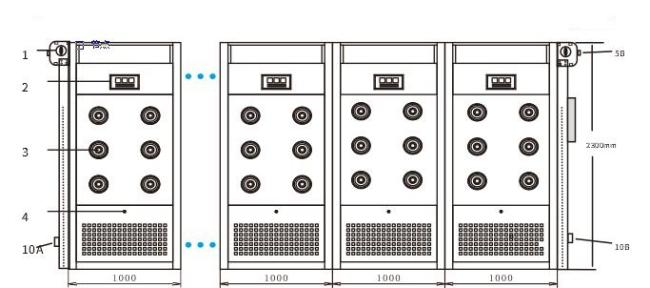

Draw: Positive Draw

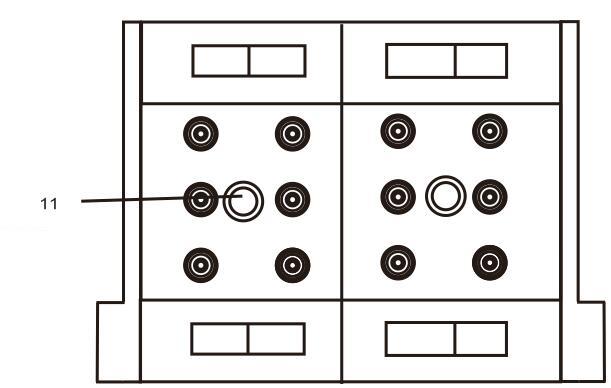

Top Draw:

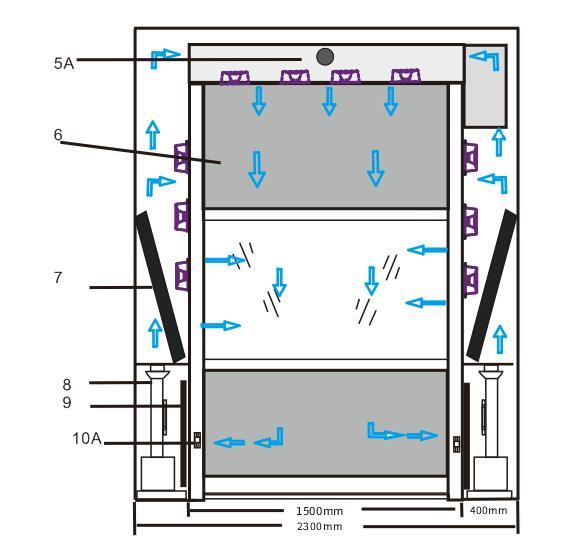

Side Draw:
Illustrate:
1: Fast shutter motor 2:Air shower control board 3:SUS Nozzle
4: Infrared Ray Indicator 5A/B:Sensor for door open 6: PVC Rolling Door
7:Big air volume motor 8: HEPA air filter(H13 99.995%@0.3um)
9: per-filter 10A/B: Sensor for door closer 11: Purification Light
Application: widely used in food, chemistry, textile, electronics, supermarkets, refrigeration, logistics, warehousing and many other places.
Certificate:
Our Service:
1: Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
