Stainless Steel Cold - Rolled Plate Pass Box Clean Room With 2 Years Warranty
Pharmaceutical GMP Workshop Customized SUS201 Static Cleanroom Pass Thru
CUSTOMIZED DESIGN IS AVAILABLE
Specifications

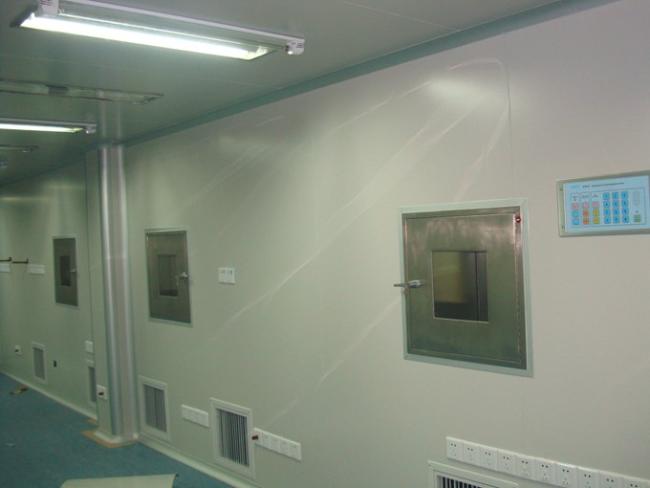

Pass box as an auxiliary device of a clean room, mainly used to deliver small objects between clean area and clean area , unclean area and clean area . In order to reduce doors opening times of clean room, to mixmum reduce the pollution of the clean area.
Parameter:
Outer Size: 800W* 700D* 800H(mm)/ 1000W*900D* 1000H(mm)
Inner Size: 600W*600D* 600H(mm)/ 800W*800D* 800H(mm)
Features:
1.Cold steel material or SUS304
2.The internal circular plate chamfering processing, no dead angle
3.Embedded ultraviolet germicidal lamp on top
4.Two-door for large angle square window

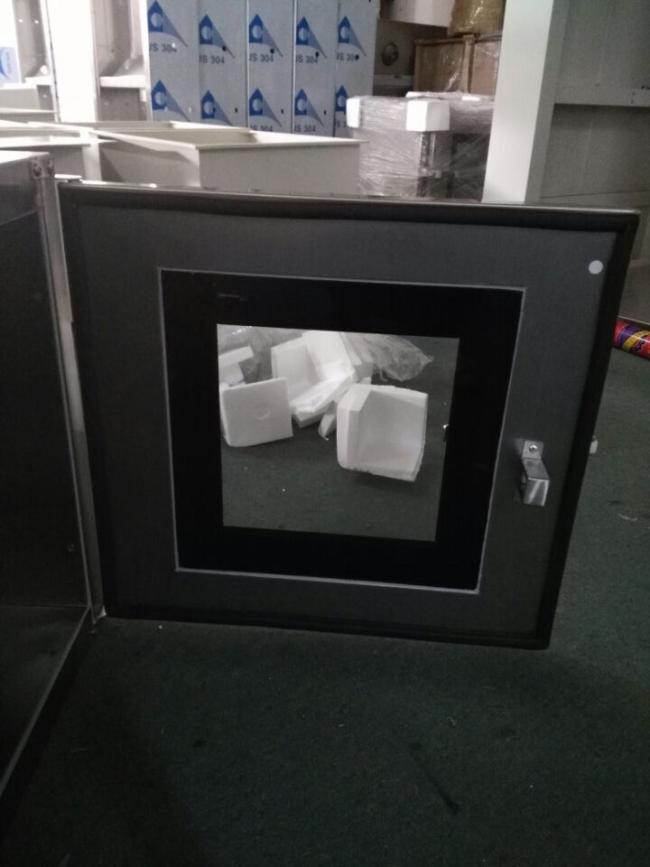

5.Double hollow toughened glass observation window
6.Soft contact control switch, microcomputer program
7.Electronic interlocking system
8.With the power indicator light
Products Parameter:
| MODEL | KEL-APB500 | KEL-APB600 | KEL-APB700 | |||
|
External size (mm) (W*D*H) |
850x500x1350mm | 950x600x1450mm | 1090x750x1600mm | |||
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 750x750x750mm | |||
| Nozzle | 4 PCS | 4PCS | 6 PCS | |||
| Air speed | 18-25m/s | |||||
|
Material (Option) |
1: Entirety Sus304.(T=1.2/1.0mm) 2: Entirety sus201. (T=1.2/1.0mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm) |
|||||
| Per-filter | 525x275x17mm | 560x275x17mm | 560x275x17mm | |||
| G3 | ||||||
| HEPA filter | 484x484x69mm | 630x630x69mm | 630x630x69mm | |||
| 99.99%@0.3um H13 | ||||||
| Optional accessories | 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller | |||||
| Power supply | 0.75KW 380V/50HZ | |||||
| packing size (mm) | 1050x780x1600mm | 1100x880x1700mm | 1240x1030x1850mm | |||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||||
Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
