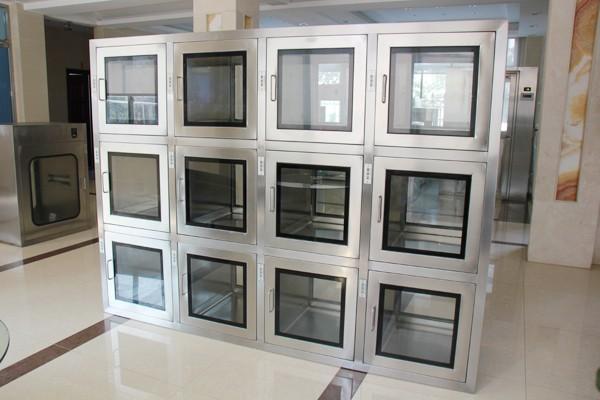

Wall - Mounted Medical Cleanroom Pass Through Window 220v 50HZ Durable
Pharmaceutical GMP Workshop Customized SUS304 Static Cleanroom Pass Box
CUSTOMIZED DESIGN IS AVAILABLE
Clean Air Products’ Cleanroom Pass-Throughs
All our standard cleanroom entry systems feature double-wall stainless steel construction that encases and protects the built-in mechanical interlock and facilitates cleaning.
See individual product listings for additional information and specifications.
Wall-Mounted HEPA Filtered Standard Pass-Through Chambers
These pass-thru chambers are designed to maintain control of particulates entering the cleanroom environment.
An internal, motorized HEPA filter recirculates air through perforations in the chamber’s inner walls.
Exceeds the US Department of Energy’s HEPA standards by removing 99.99% of airborne particles of 0.3 micrometers in diameter and larger.
Floor-Mounted Standard Pass-Through Cabinets
These standard entry systems allow for the efficient transfer of large parts, equipment,
and/or wheeled carts into and out of a cleanroom and minimize the need for personnel to enter the cleanroom environment.
Sturdy enough to handle bumps from cart traffic, these are our most popular standard pass-thru solution.
Contact Us for Standard Pass-Thrus & More
See individual product listings for additional information and specifications.
Clean Air Products designs and manufactures standard cleanroom pass-through cabinets, pass-through chambers, and pass-through windows. We also offer softwall and hardwall cleanrooms, air showers, and more.
Request a quote or contact us for standard pass-throughs for your cleanroom.
karen@haoairtech.com

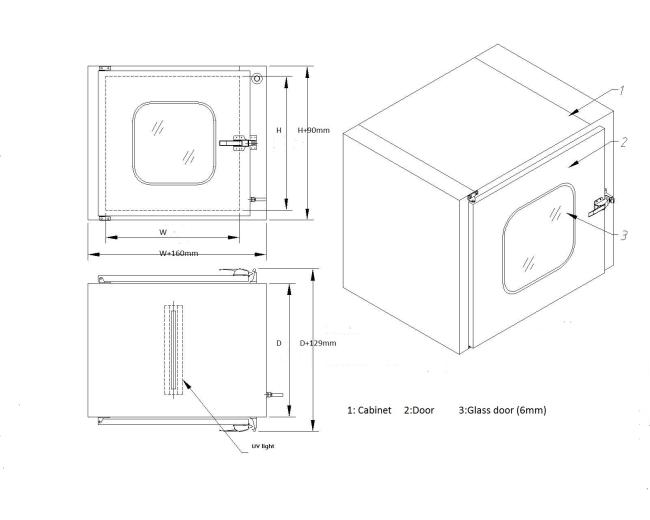

Products Parameter:
| MODEL | KEL-NPB500 | KEL-NPB600 | KEL-NPB700 |
|
External size (mm) (W*D*H) |
660x500x590mm | 760x600x690mm | 860x700x790mm |
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
|
Material (Option) |
1: Entirety Sus304.(T=1.0/1.2mm) 2: Entirety sus201. (T=1.0/1.2mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2mm) 4: External is steel with power coated. Internal is SUS201(T=1.0/1.2mm) |
||
| Control system | Electric interlocking or mechanical interlocking | ||
| UV light | 1 PCS | ||
| Power supply | 220v/50HZ | ||
| packing size (mm) | 800x870x850mm | 1000x870x940mm | 1100x970x1050mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Products Parameter:
| MODEL | KEL-SPB500 | KEL-SPB600 | KEL-SPB700 |
|
External size (mm) (W*D*H) |
700x570x590mm | 800x670x690mm | 900x770x790mm |
|
Work zone (mm) (W*D*H) |
500x500x500mm | 600x600x600mm | 700x700x700mm |
|
Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
| Control system |
1: Both door is software computer control board 2: Pass Box inside four corner is round shape without any dust accumulation 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life |
||
| UV light | 1 PCS | ||
| Power supply | 220v/50HZ | ||
| packing size (mm) | 800x870x850mm | 1000x870x940mm | 1100x970x1050mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
