SUS304 Negative Pressure Laminar Flow Dispensing Booth / Laminar Flow Workstation
SUS304 Negative Pressure Laminar flow Dispensing Booth For Raw Material Cleanroom Equipment
CUSTOMIZED DESIGN IS AVAILABLE
Product Description
Clean booth is a kind of air purifying equipment providing partial high clean environment,
it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation,
it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable.
It can be installed in part of clean room of general level which requires high cleanliness to save cost.
Microprocessor Control Panel
Users can control the fan, light, UV and adjust the air velocity with it

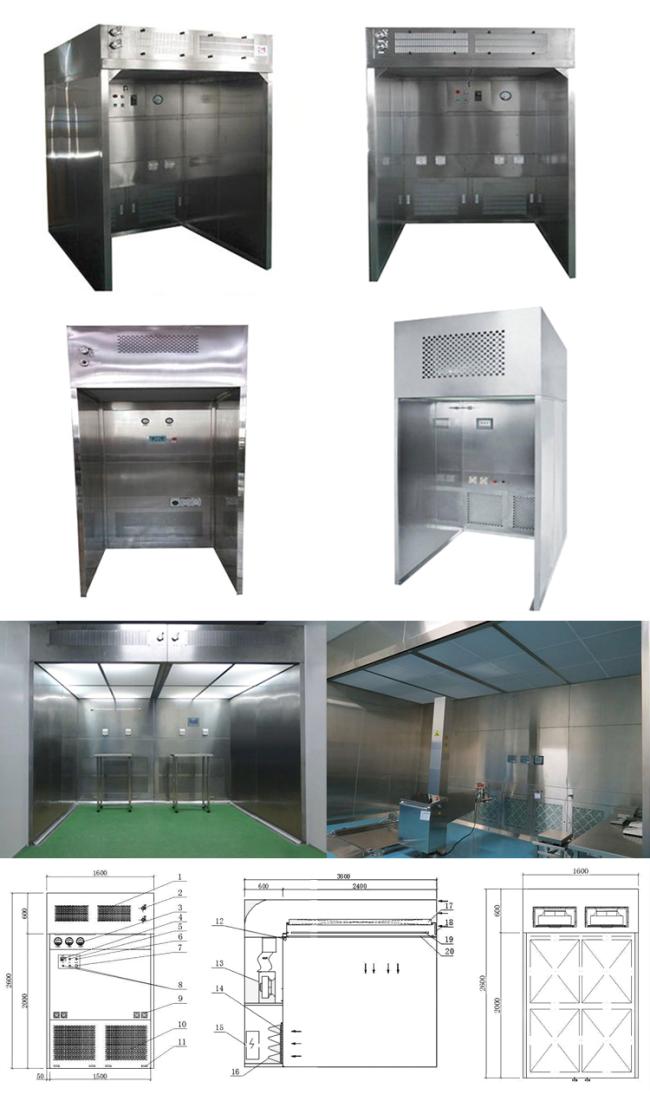

Design drawing

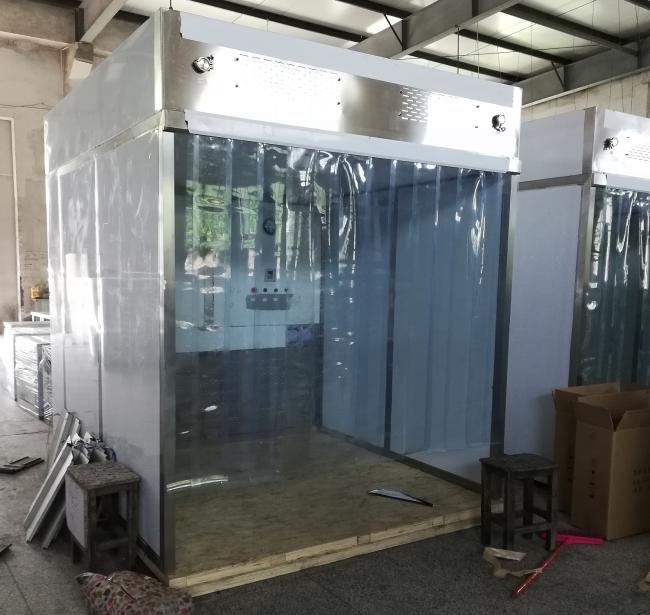

Soft Wall Material
PVC anti-static dustproof curtain.
FEATURES:
1. It can be used singly or combined.
2. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
3. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement( Universal wheel can be installed)
4. Customized design is welcome.
Products Parameter:
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB2000 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.45m/s +_20% | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Control system |
1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost, |
||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | G4 Z-Line panel air filter | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
