Cleanroom Professional Ceiling And Wall Laminar Flow Diffuser HEPA Filter Box

CUSTOMIZED DESIGN IS AVAILABLE

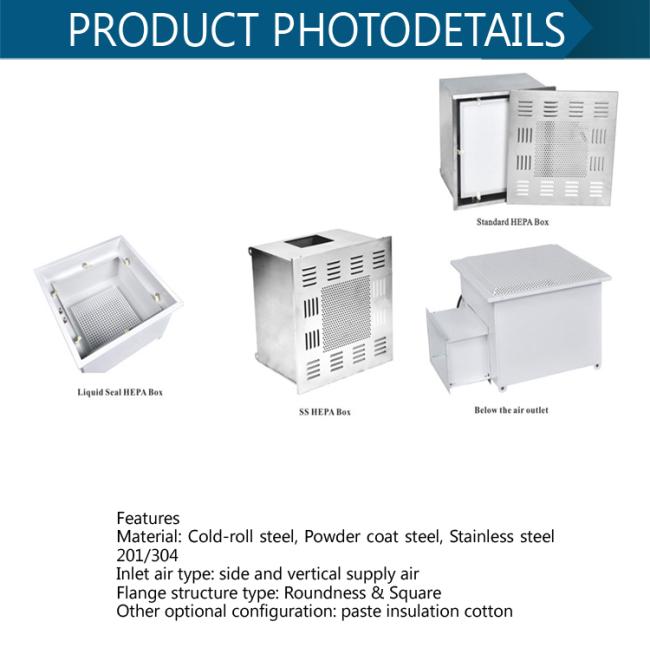

HEPA box

The HEPA Box is the terminal filtration device for the renovation and construction of the clean room at the level of 1000-300000 level,
which is the key equipment to meet the requirement of purification. It consists of static pressure box,
HEPA filter, filter tube and diffused hole plate. It has the advantages of beautiful shape, simple structure and simple construction.

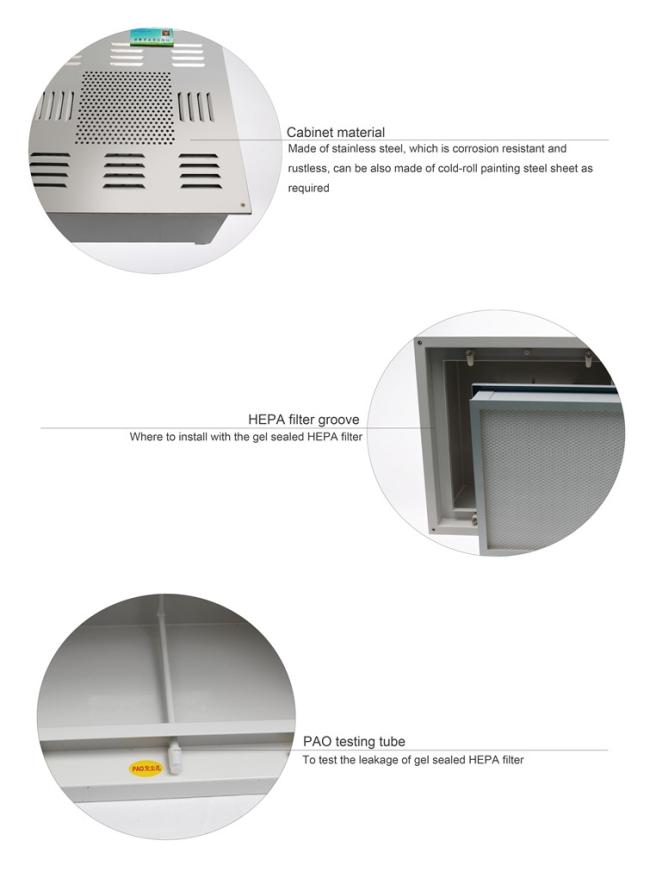

Structure description:
1, enclosed structure.Can abandon type ceiling filter group adopts closed structure, and pass the test to prevent leakage between inlet and outlet, all metal bonded joint together, avoid sliding sideways.
2, small volume, light weight.Anodizing aluminum alloy box material, the standard height is only 150 mm, convenient to transportation and installation
3, efficiency, can choose the efficient, effective, highly efficient filters.
4,Up to the United States UL fire prevention requirements.Enclosure attached with 12.5 mm thick PE insulation cotton, fire rating for the B1 level
5, tuyere diameter has 10 "(phi = 250 mm), 12" (phi = 300 mm), 14 "(phi = 350 mm).

Application

Suitable as terminal filtration of air supply system in clean workshops and clean rooms required the high cleanliness. Availably to ensure air flow speed and prevent swirl.

Technical Parameter:

Customized design is available.
