Cosmetic Industry Fan Air Cleaning Unit FFU Powered EBM Fan SUS304 Material
Cosmetic Industry Fan Air Clean Unit FFU Powered EBM Fan Manufacturer
CUSTOMIZED DESIGN IS AVAILABLE
Product Description

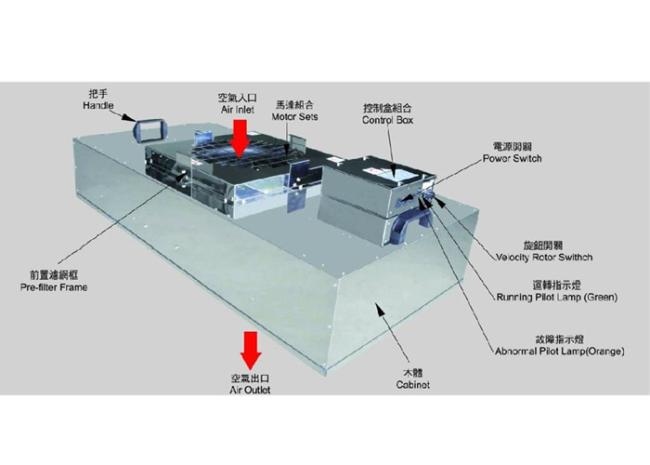

Hepa Fan Filter Unit which draws in contaminated air from the top of the module,
and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base,
is a self-contained fan and filter module for cleanroom applications.
Application: FFU’s are commonly used in the construction of Class 100 to Class 100,000 cleanrooms,
even forming ultra clean line, clean closet and etc…
Features :
1.Nice appearance , human centered design--Adding stainless handle, easy installation and delivery, and perpendicular design.
2.High performance and low noise fans--Adopting Energy-saving Multi-blade turbine fan, lower noise,
Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.
3.Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.
4.Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...
5.Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.
6.Premium Current-averaging design of the inside--Ensures deviation of the blowing side lower than ±10%.
Applications: conventional clean room construction, soft wall or hard wall clean room,
Technical Parameter:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |

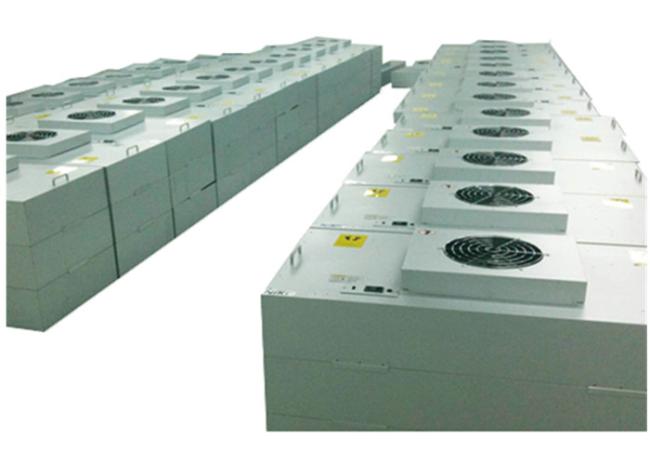

Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
