Customized SS201 Vertical Air Flow Softwall Clean Room For Food Factory
SS201 Vertical Air Flow SoftWall Cleanroom For Biological Pharmacy
CUSTOMIZED DESIGN IS AVAILABLE
Introduction:
It is for solution when clean air areas need to be created on a small to mid scale, flexible and economical, they may be easily relocated when application requirements change, dimensional and cleanliness class requirement.
Clean Booth provides a very wide variety of standard sizes and cleanliness levels and almost any custom configurations or applications you request.

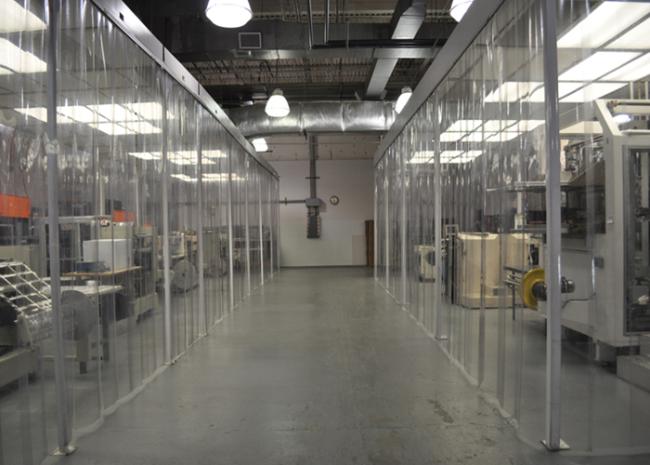

A soft wall clean booth, made of removable anti-static vinyl strip curtains, is the most cost-effective equipments available for any zone, needing a special filtration.
Clean Booths, which are of a modular build format, allows ease of installation and as a result to provide less downtime.
Clean booths are usually used in dispensing, sampling, and off-loading areas within pharmaceutical, chemical and bio-chemical industries.
The advantages of soft wall clean booth include ease of access and ensuring the clean zone staying within specific cleanliness level need.
Application
It is used to the workshop area which requires a higher level of internal purification, such as the pipeline work area, high-precision product assembly area, semiconductor industry, biochemistry, medicine and food industry, etc.
OEM
Customized design is available.
Technical Specification:
| MODEL | KEL-LFB2000 | KEL-LFB3000 | KEL-LFB4000 | KEL-LFB5000 |
|
Ex size (mm) (W*D*H) |
2000X2000X2596 | 3000X3000X2596 | 4000X4000X2596 | 5000X5000X2596 |
| In size (mm) | 1900x1900x2205 | 2900x2900x2205 | 3900x3900x2205 | 4900x4900x2205 |
| Purification rank | Class10-300,000(FS209E USA) | |||
| HEPA filter | Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) | |||
| Pre-filter | Efficiency : 85% @ 5um | |||
| Control system | PC control system / promised speed by control box | |||
| Pressure Gauge | American Dywer pressure | |||
| Noise | <50-55 dB (test point distance is 1m) | |||
|
Air velocity (m3/h) |
0.2-0.5m/s Adjustable (test point distance is 30cm) | |||
| Frame material | stainless steel/steel with power coated/Cast aluminum profile | |||
| Wall frame | Tempered glass / PVC anti-static curtain (option) | |||
| Fan | EBM Fan /Taiwan fan/ Domestic fan (option) | |||
| Power suppler | AC110/220v 50HZ/60HZ | |||
Customer’s design is available.
Company Information
Our factory with competitive price
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
