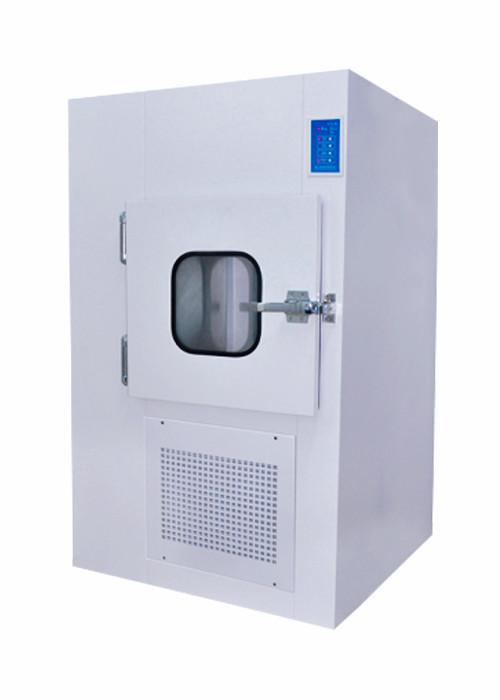

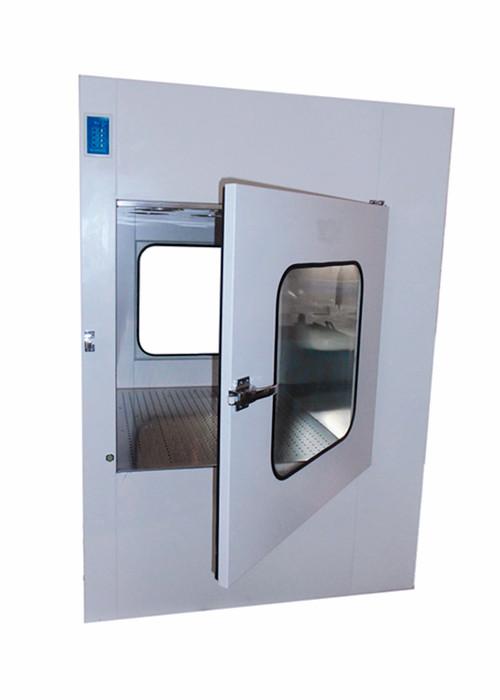

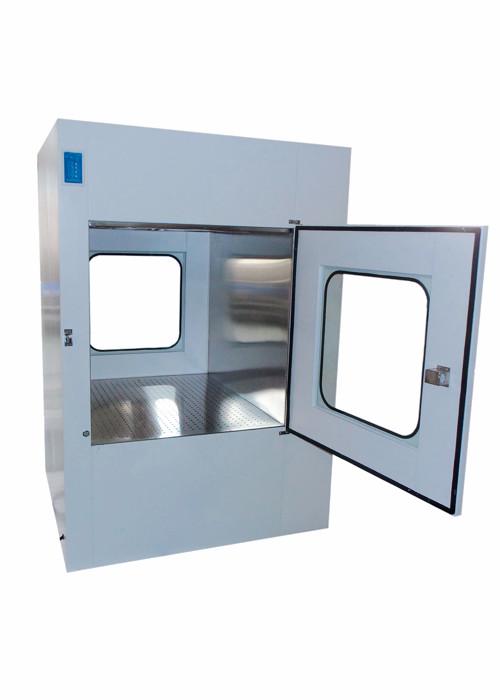

Stainless Steel 304 201 Air Shower Pass Box With Automatic Blowing
Stainless Steel 304 201 Air Shower Pass Box With Automatic Blowing
Introduction :
Pass Box With Air Shower is designed according to the model of the air shower , the air blown out quickly by the fan will become clean air passing through the high efficiency filter , which can be used to remove the dust particles from the surface of the object effectively and rapidly. After the double filtration by circulation air and two level efficiency filter, the effect of purification is notable with strong usability . Air Shower Pass Box is widely used in lots of fields , such as Food processing , Microelectronics .
Application :
Semi - conductors and Liquid crystal device , Electronic or precision machine part , Hospital , Biological pharmaceutical , University laboratories , Food processing .
Operation features:
1. All components of the air shower pass box are designed for maximum chemical resistance and enhanced durability for a long service life . Available in powder coated steel , stainless steel .

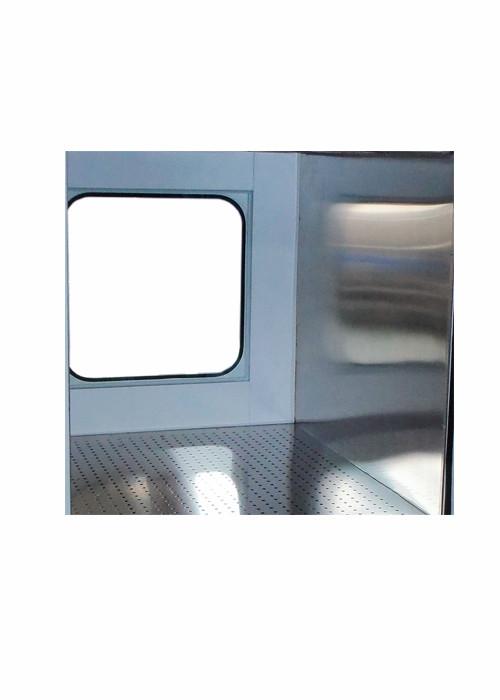

2. The air shower pass box base surface is constructed of perforated stainless steel , making the work zone easy to clean .
3. Electrical or machinery interlock maintains cleanroom integrity by preventing both doors from being opened at the same time .
4. Use both pre-filter and HEPA filter , prolonging the working life of HEPA filter and reducing the operating cost .
5. The duration of air shower can be adjusted to 0 - 99 seconds .
6. Automatic shower set to work by infrared ray inductor .
7. High powered blower , large air volume with low noise .
8. The air is continuously filtered and recirculated .
9. Adjustable nozzles are mounted on the top .
Parameter :
| Pass Box With Air Shower / Air Shower Pass Box | ||||
| Model | KEL - ASPB500 | KEL - ASPB600 | KEL - ASPB750 | KEL - ASPB800 |
|
External size ( W * D * H ) mm |
840x500x1350 | 940x600x1450 | 1090x750x1600 | 1140x800x1650 |
|
Internal size ( W * D * H ) mm |
500x500x500 | 600x600x600 | 750x750x750 | 800x800x800 |
| Material |
1. Entirely is SUS 304 / 201 ( T = 1.0 / 1.2 / 1.5mm ) 2. External is steel with power coated , internal is SUS304 ( T = 1.0 / 1.2 / 1.5mm ) 3. External is steel with power coated , internal is SUS201 ( T = 1.0 / 1.2 / 1.5mm )
|
|||
| SUS nozzle | 4 PCS | 4 PCS | 6 PCS | 6 PCS |
|
HEPA filter size ( mm ) |
360x360x69 | 484x484x69 | 630x630x69 | 680x680x69 |
|
Pre-filter size ( mm ) |
425x275x17 | 525x275x17 | 560x275x17 | 560x275x17 |
| Interlock | Mechanical or Electronic interlocking for your choose | |||
| HEPA Filter Efficiency | 99.99%@0.3um | |||
| Air flow | 1200m3 / h | |||
| Noise | < 65dB | |||
| UV light | 1PCS | |||
| Power | 380V / 50HZ 750W | |||
Available Selection:
1. UV light
2. Ozone light
3. Conveyor belt
ABOUT US :
GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
