Professional H13 H14 Gel Seal HEPA Air Filter For Pharmaceutical Cleanroom
Professional H13 H14 Gel Seal Hepa Air Filter For Pharmaceutical Cleanroom
Introduction:
The Gel seal hepa air filter is an ideal clean filter for industrial clean room and biological clean room. It is also an ideal matching filter for other purification equipment. The tank seal is a method that is superior to the currently used mechanical press seals. The tank sealant is blue and similar to jelly, which also named jelly. The liquid tank sealant is a non-Newtonian liquid. The glue has the characteristics of non-volatility, no oil climbing, non-toxic and tasteless. Fluid sealant hepa filter has good stability at normal temperature. The tank sealing filter is easy to install and the seal is very reliable. High efficiency filter sealing method. is widely used in international.
Application:
Widely used in high-purity clean rooms, large-area vertical flow, 100-level laminar flow biological safety cabinet, biotechnology, laboratory, sterile room, pharmaceutical factory, research institute and other high clean room.
Operation featurea:
1. Excellent sealing performance, good leak retentio.
2. The flange is filled with jelly gel, which has good stability at normal temperature, non-toxic and tasteless, and reliable sealing. It is usually used in conjunction with the knife frame.
3. Large filtration area, high efficiency, long service life and low resistance.
4. Beautiful appearance, thin thickness, light weight, easy installation and low operating cost.
5. Efficiency range: H13, H14.

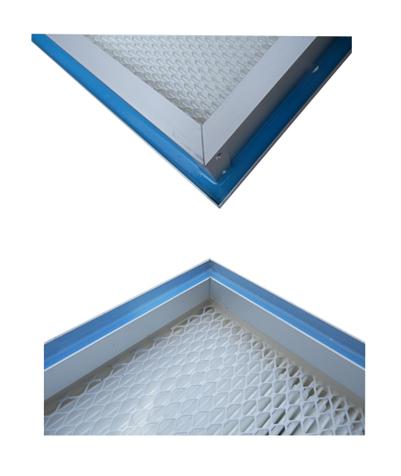

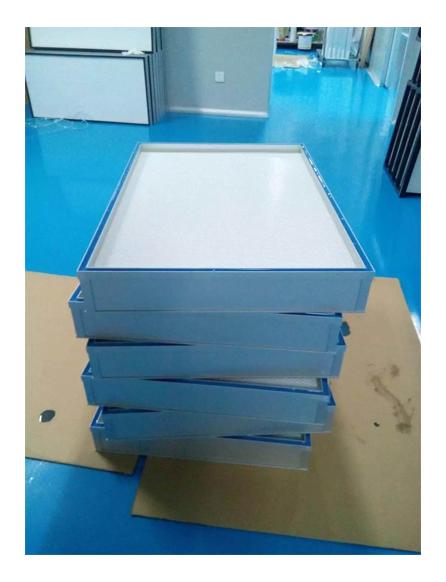

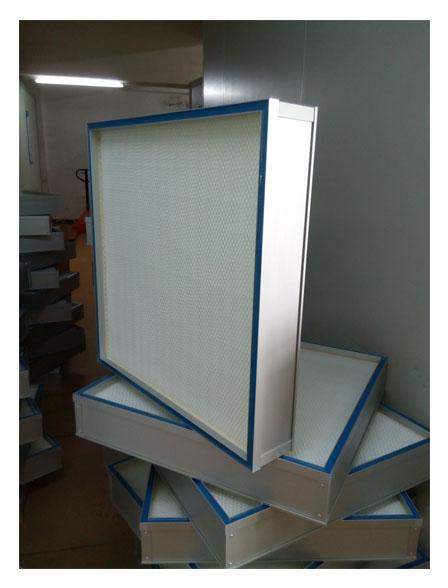

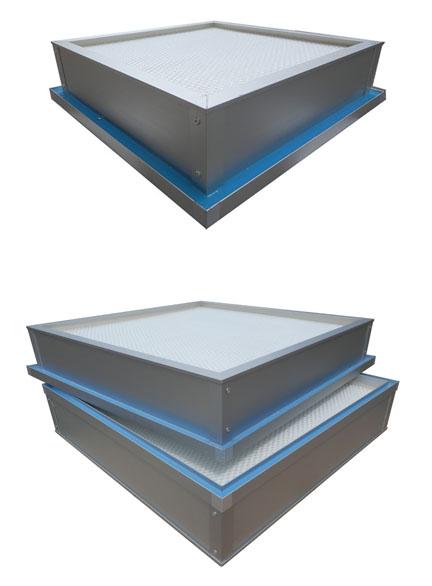

Photograph:
Parameter:
| Gel Seal Hepa Filter | ||||||
|
Size(W*H*D) mm |
Air Flow (m3/h) |
Media Area (sq.m) |
Dust holding (g) |
Primary Resistance | Finally Resistance |
Efficiency (0.3m) |
| 346X346X90 | 400 | 4.16 | 250 | <200pa | 400-600pa |
>99.99% H13-H14 |
| 510X510X90 | 90 | 9.42 | 570 | |||
| 636X636X90 | 1450 | 14.9 | 900 | |||
| 941X636X90 | 2150 | 21.22 | 1330 | |||
| 1246X636X90 | 2850 | 29.33 | 1760 | |||
ABOUT US :
GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
