Horizontal Laminar Airflow Cabinet / Laminar Transfer Cart In Pharmaceutical Plant
Horizontal Laminar Airflow Laminar Transfer Cart Uesd in Pharmaceutical Plant
Introduction
Keling's Horizontal Laminar Airflow Laminar Transfer Cart provide enhanced aseptic work zones by utilizing uni-directional airflow to purge the working environment from contaminants allowing aseptic transfer of materials throughout the Pharmaceutical plant.
Laminar Airflow Laminar Transfer Cart are customizable units that can provide:
1.Product aseptic zones with single pass or re-circulatory airflow
2.Operator or environment protection (only available in re-circulatory airflow) and in negative pressure with respect to ambient.
Applications
1.transfer of lyophilized vials to and from freeze driers
2.transfer of process skids or feed hoppers
3.aseptic workzones
Standard features
Easy to clean design with single welded construction
tempered glass doors
stainless steel hinges
HEPA/ULPA knife edge gel seal design is better than conventional gasket sealed
Sentinel Silver micrprocessor control with audio/visual alarms for downflow velocity
zoned Magnehelic gauges for filter loading
PU wheels
special food grade FDA approved air tight seal
10mm glass windows with plastic latches
Magnehelic differential pressure gauges for monitoring filter lifespan
Battery for onboard power when not connected to main building supply
Specifications:
Customer Design is Available.
Filters |
Aluminum framed HEPA filters with a minimum efficiency of 99.99% at 0.3 micron. |
| Air flow | 90 FPM (0.45 m/s) 10 FPM (0.05 m/s) |
| Noise level | 65dB |
| Motor / Blower assembly | Direct drive continuous duty 1/4HP with sealed bearings. |
| Pre filter | Washable type pleated pre filter with 90% efficiency. |
| Particle Containment | Particle Containment (OEL < 100 µg/m3) |
| Finish | Stainless steel, satin non glare or painted |
| Size(W×D×H)mm | 750×750×960 | 900×850×1800 | 1200×850×1800 |
| Pre-Filter | 595×595×46 | 595×595×50 | 495×595×50 |
| HEPA filter | 600×600×69 | 600×600×69 | 600×600×69 |
| Rated Air flow | 2500 m3/h | 4000 m3/h | 5000 m3/h |
| Noise | <65dB | ||
| Power | 180W | 370W | 800W |
| Material | Powder coated steel/stainless steel | ||
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Our company

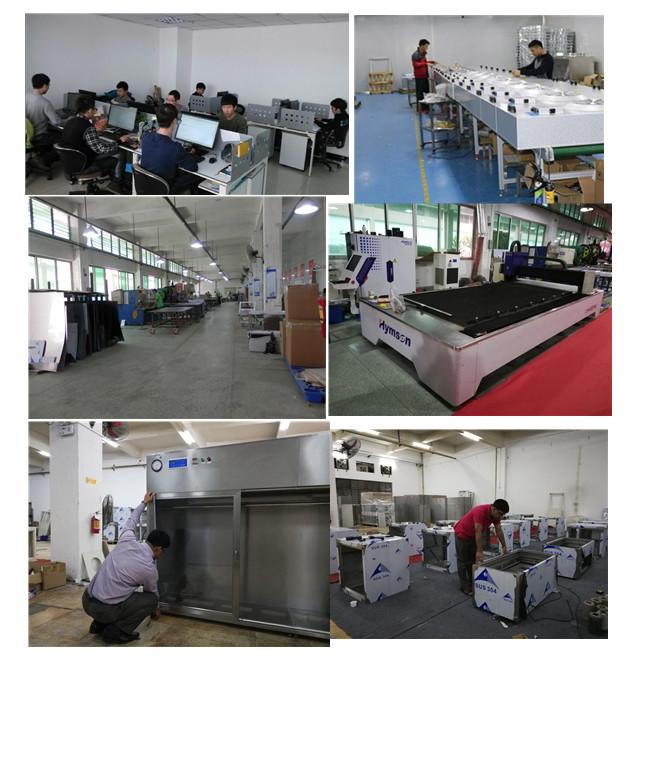

KeLing Purification Technology Co., Ltd engaged in air purification filed for many years.It ia s Professional team for research and development clean room products whose sale air purification clean room equipments and clean room HVAC air filters.
