Goods Air Shower/ Cleanroom Air Shower With Roller Conveyor Dusting Tunnel

Introduction

Cargo air shower is a cutting-edge technology that provides a high level of cleanliness for cargo during transportation. It is designed to remove contaminants from the surface of the products to ensure a safe and clean delivery. This system operates with a unique combination of airjet nozzles and HEPA filtration system that delivers efficient airflow to remove contaminants.

Characters

Photoelectricity control,automatic shower.
Circulated air design keeps shower area clean in non-shower state.
Double doors adopt electric interlocking to force shower;double doors may be made as automatic movable door.
Made as negative pressure and anti-exploding air shower according to users' requirment.
Equipped with the device to remove static.
Carry on air brake,cushion type and other particular design,manufacturing.

Parameter

External size : 2110x2380x2400mm

Internal size : 1460x1650x1900mm

Material: External is steel with power coated internal is stainless steel 304

Both side with Auto Roller Door

air speed: more than 24m/s

Control system : PLC control system

Compact product : Auto Conveyor Line

Customer's design is avaliable.

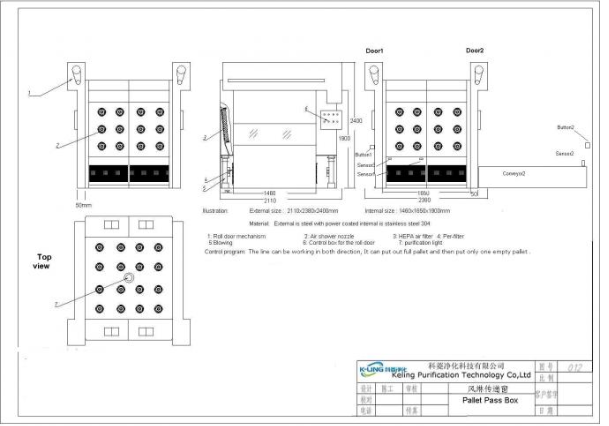

Drawing

1: Roll door mechanism

2: Air shower nozzle

3: HEPA air filter

4: per-filter

5: blowing

6: control box for the roll door

7: purification light
