Class10000 Prefabricated Modular Clean Room For Electronics Assembly

 Quickly detail  :

 Extenral size :5000x3000x2596mm
 Internal Size: 4900x2900x2205mm
 Purification rank: Class1000
 HEPA filter efficiency: 99.999%@0.3um
 Laminar flow: vertical
 Air speed :0.3-0.6m/s
 Power: 220V/50HZ


Introduction and applications:

       Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.

Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy




Illustration:
1:  The frame is steel cube with milk powder coated.
2:  M support leg
3:  The wall made from clarity synthetic glass.
4:  FFU control box.
5:  FFU with HEPA filter and pre-filter
6:  Purification lamp
7:  PVC strip curtain
8:  Purification rank class100-1000 (FS209E Stander)

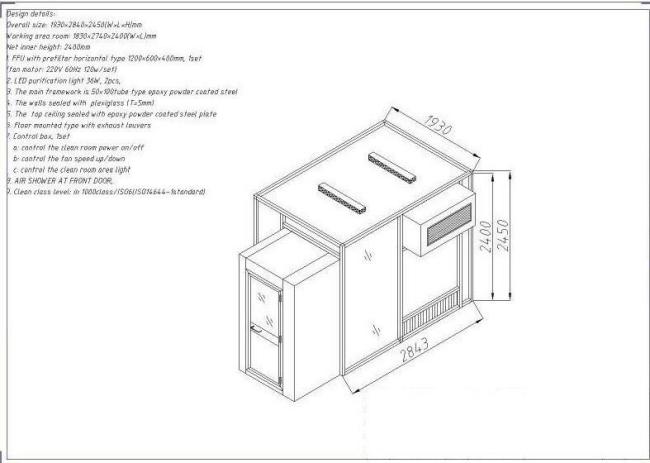

  Technical Parameter:

Customer’s design is available.
