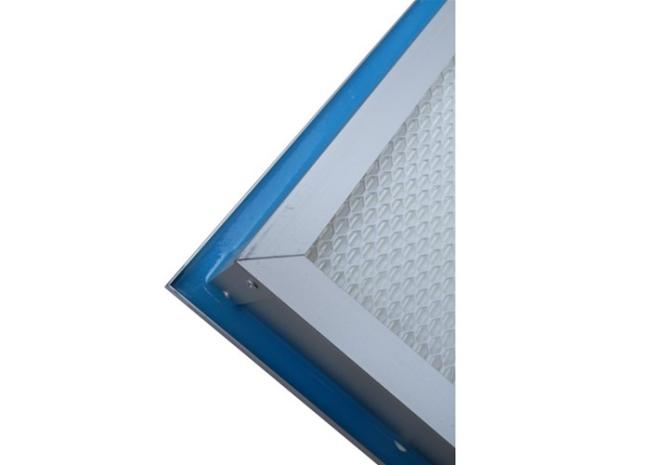

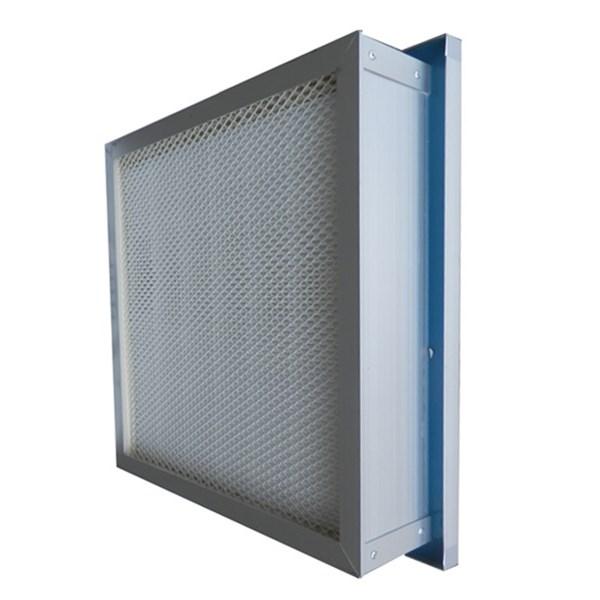

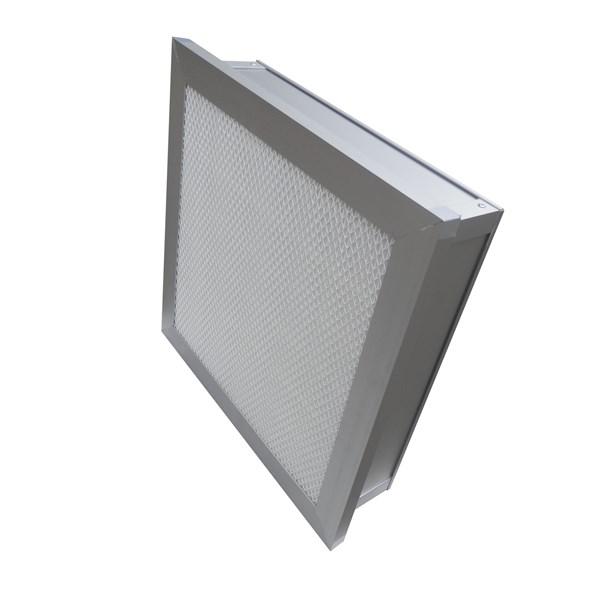

Reverse Gel Seal HEPA Air Filter Aluminum Frame And Fiber - Glass Material
H14 Reverse Gel Seal HEPA Air Filter Aluminum Frame And Fiber-glass Material
About Gel Seal HEPA filter
Product features
1.Premium aluminum frame, simple structure, energy saving
2.Frame covered by soft cushion, hyperfine glass fiber filter paper inside
3. Custom service to meet different requirements
Structure explanation
1.Special hot melt adhesive is used to separate high-efficiency filter paper, ensuring low resistance and even wind speed
2.All components are made from materials of low chemical volatility, satisfying higher air condition requirement
3.Double-side retainers, convenient to install and change, small and light
Specification:
Customer Size is Available.
| Nominal Size | Actually Size | Thickness | Screen | Rate air flow | Face Velocity | Primary Resistance |
| (Feet)(W*H*D) | (mm)(W*H*D) | (mm) | (m3/h) | (m/s) | (Pa) | |
| 2x2 | 570x570 | 80 | Both side | 472 | 0.45 | H13 :110pa H14: 120Pa U15: 140Pa |
| 4x2 | 1170x570 | 80 | Both side | 1000 | 0.45 | |
| 2x1 | 610x305 | 80 | Both side | 258 | 0.45 | |
| 2x2 | 610x610 | 80 | Both side | 545 | 0.45 | |
| 2.5x2 | 762x610 | 80 | Both side | 687 | 0.45 | |
| 3x2 | 915x610 | 80 | Both side | 831 | 0.45 | |
| 2x2 | 570x570 | 104 | Both side | 472 | 0.45 | H13 :80pa H14: 90Pa U15: 110Pa |
| 4x2 | 1170x570 | 104 | Both side | 1000 | 0.45 | |
| 2x1 | 610x305 | 104 | Both side | 258 | 0.45 | |
| 2x2 | 610x610 | 104 | Both side | 545 | 0.45 | |
| 2.5x2 | 762x610 | 104 | Both side | 687 | 0.45 | |
| 3x2 | 915x610 | 104 | Both side | 831 | 0.45 |

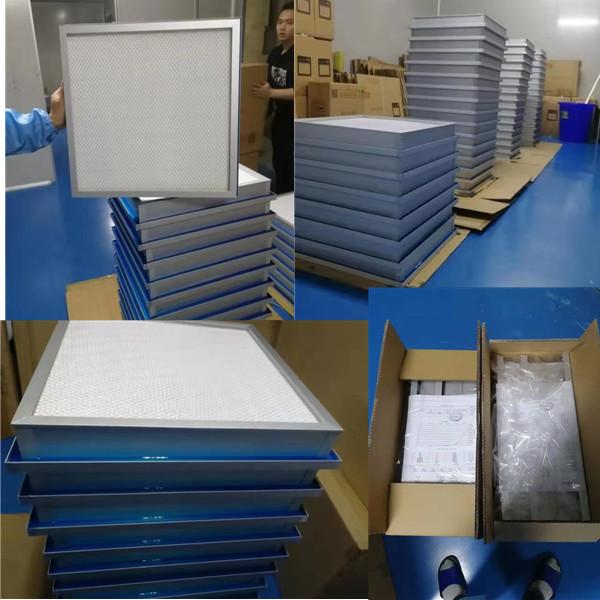

Display

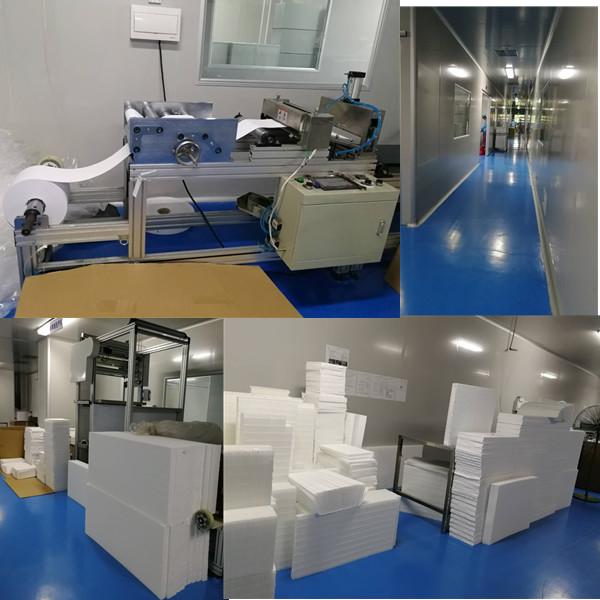

Factory
