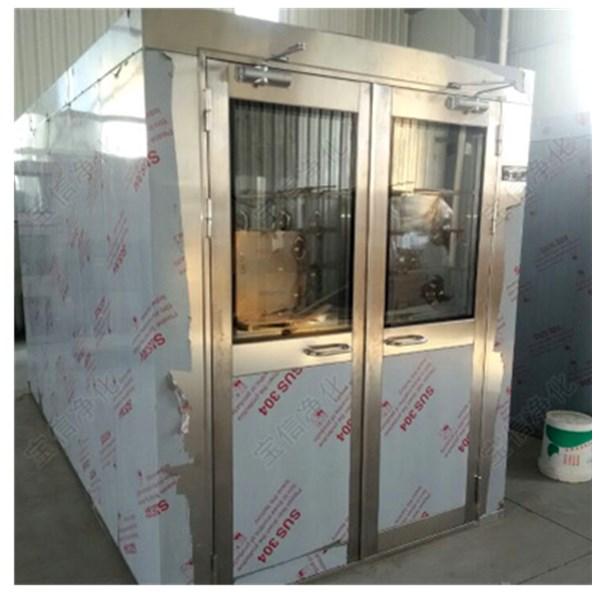

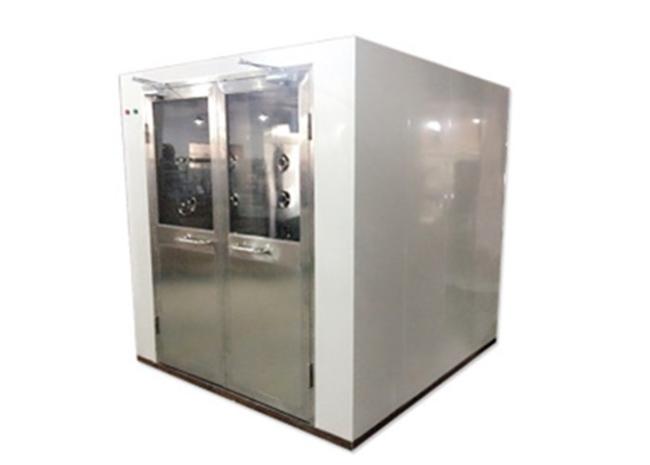

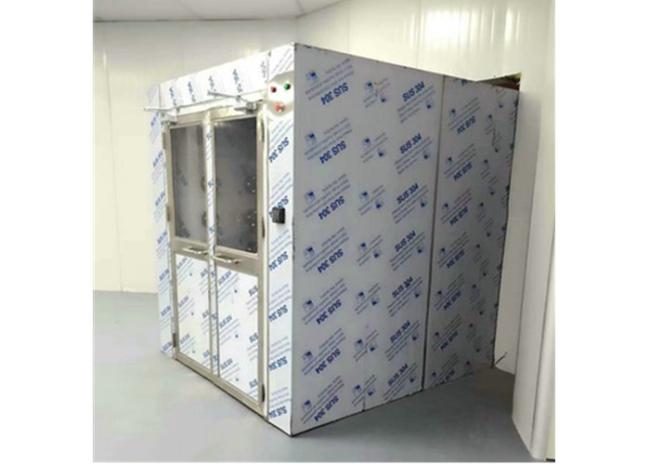

Customizable Speed Adjustable SUS201 Cleanroom Air Shower
Double Swing Door Clean Room Air Shower Size Customizable SUS 201/304/316 Material
FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.
5, air velocity can up to 25m/s. professional and fast design, non-standard products.
Alternative Configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Parameter
| Model | HA-1A | HA-1C | HA-2C |
| Number of users | Single | Single | Double |
| Air Shower Time | 0~99 s | ||
| Nozzles Quantity | 6 | 12 | 24 |
| Nozzles Diameter | 30mm | ||
| Nozzles Wind Speed | 20~28 m/s | ||
| Filter Efficiency | 99.99% | ||
| Inner Size(mm)W*D*H | 750*750*1900 | 750*750*1900 | 800*1500*1900 |
| Outer Size(mm)W*D*H | 1050*850*2000 | 1250*850*2000 | 1300*1600*2000 |
| Voltage | AC 3N 380V 50Hz | ||
| Power(W) | 550 | 1100 | 2200 |
| Weight (KG) | 250 | 350 | 550 |
| Hepa Filter Size | 600*600*120 1Pc | 600*600*120 2Pcs | 600*600*120 4Pcs |
Display
