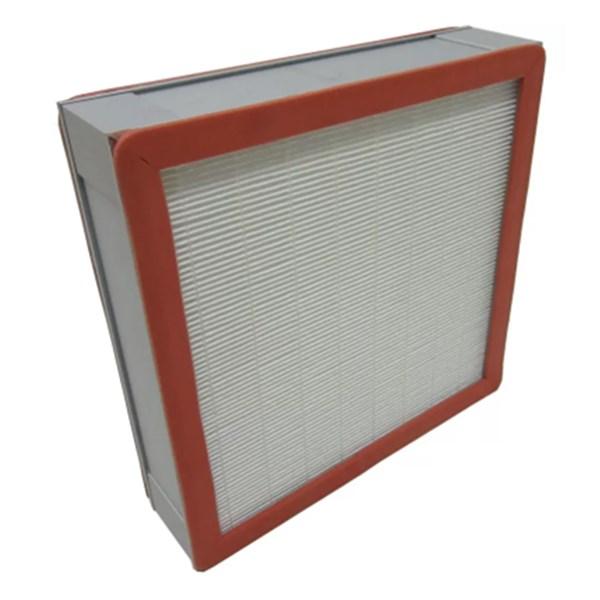

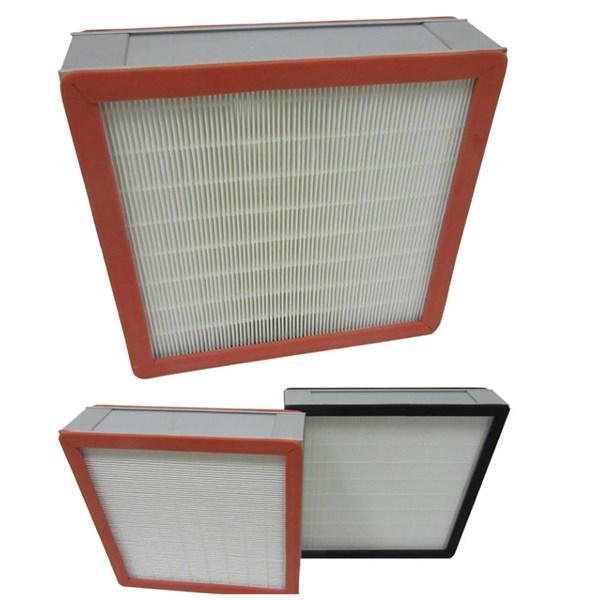

Glass Fiber Media Air Flow HVAC System HEPA Air Filter
Glass Fiber Media Large Air Flow HVAC System HEPA Air Filter Easy Installation
Application Industries:
Operating Room HVAC System
1. Clean rooms ( suitable for use in multilayer filter filtration system or micro component electronic manufacture & assembly)
2. Food processing industry.
3. Pharmaceutical Processing
4. Aerospace Engineering
5. Genetic & Biological research
6. Biohazard Atmosphere
7. Laminar Flow Workstations
8. Bio Safe Hoods(Biological Safety Cabinets)
9. Hospital Operating Theaters & Intensive care units
10. Atomic Research
11.hepa air filter used for electronic, medicament,food.
Material And Performance:
| Frame Material | Aluminum |
| Filter medium | Glass fiber |
| Sealant | Polyurethane adhesive |
| Partition | Hot melt adhesive |
| Max. humidity | 80%RH |
| Max. temperature | 80°C |
Specification And Technical Parameters:
| Model |
Nominal Size WxHxD (inch) |
Actual Size WxHxD(mm) |
Rated Airflow (m³/h) |
Surface Wind Speed (m/s) |
Initial Resistance (pa) | Efficiency (Colorimetric Method) |
| HA-HF | 12 x12 x 2 | 305x305x50 | 400 | 0.45 | ≤220 | H13/H14 |
| HA-HF | 12 x 24 x 2 | 305x610x50 | 500 | 0.45 | ||
| HA-HF | 24 x 24 x 2 | 610x610x50 | 700 | 0.52 | ||
| HA-HF | 36 x 24 x 2 | 915x610x50 | 1100 | 0.52 | ||
| HA-HF | 48 x 24 x 2 | 1220x610x50 | 1400 | 0.52 | ||
| HA-HF | 24 x 24 x 2-3/4 | 610x610x69 | 1000 | 0.75 | ||
| HA-HF | 48 x 24 x 2-3/4 | 1220x610x69 | 2000 | 0.75 | ||
| Special size can be customized. | ||||||
Features:
Large air flow,
Easy installation,
Long operating life.
Low initial pressure drop,
Economical and practical,
High dust holding capacity.
1,It is used patent technology to ensure the full use of v-type passage;
2,The frame is extruded and anodized aluminium;
3,Using the high end sealing technology;the effect keeps for a long time and the airflow is even.
Anti-aging technology;
Not changeful form;
A low resistance and long life-span.
