Electric Interlock Double Doors Air Shower Tunnel For Cleanroom
Electric Interlock Person Air Shower Tunnel With Double Doors For Cleanroom
Introduction
Air shower, air purification equipment being abing able to clean the surface os human body and articles, preventing the unclean air invade into it.to meet the cleanliness requirement of clean room with the help of air condition system.
Cabinet maderial:cold-rooled steel with multi-layer picking electrostatic painted or stainless steel
With G4 and H13 HEPA filter two level filtration to ensure the purfication class
High quality infrared sensor automatically showering,imported electronic interlock device

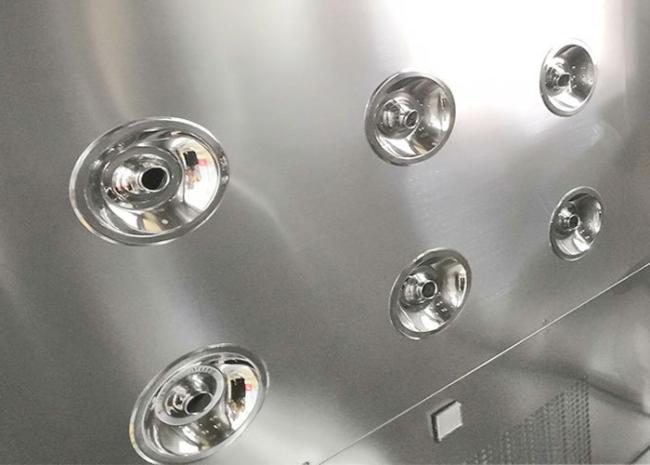

With corresponding number of multi-angle adjustable stainless steel nozzles,double side blowing design ,can flow results
Liqui-crystal display, air shower time 0-99S adjustable and display the time of air showering
Adopts big air volume with low noise external rotor fan ,surface air velocity greater than 25m/s,in line with national standards
Air showering factory test according to U.S.Federal Standard 209Eone by one to ensure product quality.

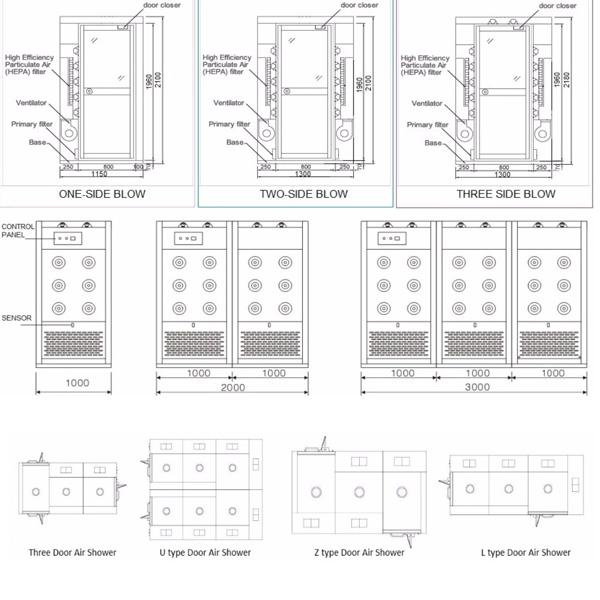

Design drawing
Parameter
| Model | KEL-AS1290/1 | KEL-AS1290/1 | KEL-AS1290/1 | Air Shower Tunnel | |
| External Dimension | 1290×1000×2050 | 1290×1000×2050 | 1290×2000×2050 | 1590×5000×2050 | |
| Internal Work Zone | 790×860×1910 | 790×860×1910 | 790×1860×1910 | 790×4860×1910 | |
| Suitable Number | 1-2 person | 1-2person | 2-4person | Tunnel type | |
| Noise Level(dB) | <62 | <62 | <62 | <62 | |
| Stainless Steel Nozzle | 6PCS | 12PCS | 24PCS | 72PCS | |
| Wind Speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥25m/s | |
| Prefilter | Size | 775×380×17×1pc | 775×380×17×2pcs | 775×380×17×4pcs | 775×380×17×8pcs |
| Efficiency | G4 | G4 | G4 | G4 | |
| HEPA Filter | Size | 610×610×120×1pc | 610×610×120×2pcs | 610×610×120×4pcs | 610×610×120×8pcs |
| Efficiency | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | |
| Fluorescent Lamp | 20W×1 | 20W×1 | 20W×2 | 40W×4 | |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Total Power | 780W | 780W | 780W | 780W | |
Display
