Plastic Frame Dust Holding V Bank Air Filters With Fiberglass Medium Material

Applications:

V-type air filter uses thick mini-pleat filter elements in V patterns to increase the filtration area in an effective way, featuring high air volume, low resistance and long service life, which is mainly used in HVAC systems in the clean room. The filters of this type include different efficiencies ranging from medium efficiency (F6-F9), sub-high efficiency (H10-H12) to high efficiency (H13-H14) for options. W-type filters include box type and W type, with the frames made of plastics, galvanized sheets, aluminum plates, stainless steel plates and plastics sprayed steel plates etc.

Advantages:

Large filter surface with compact construction
Low installation depth
High dust holding capacity
High air flow capacity with low pressure drop
High economic efficiency
Reduced energy operating costs
Without pollutant emission fully incinerable
High bursting pressure, dust migration impossible
Can be installed horizontaliy as weli as verticaily

Material and operating conditions:

Size and Specification:

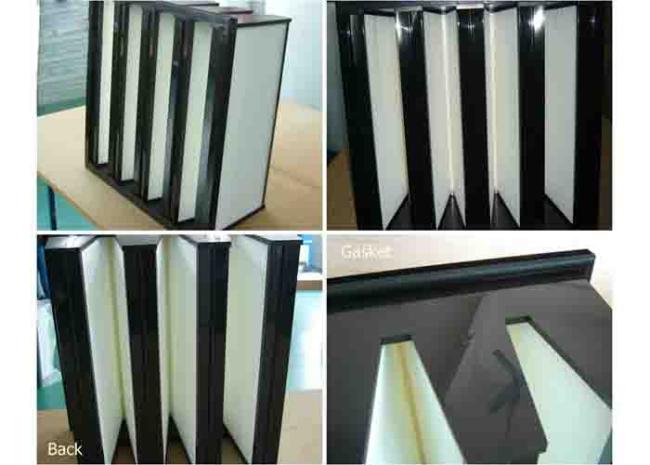

Detail
