Class A Laminar Flow Booth/ Dispensing Booth For Pharmaceutical Factory

Introduction

Pharmaceutical Weighing Booth, Laminar Flow Clean Booth

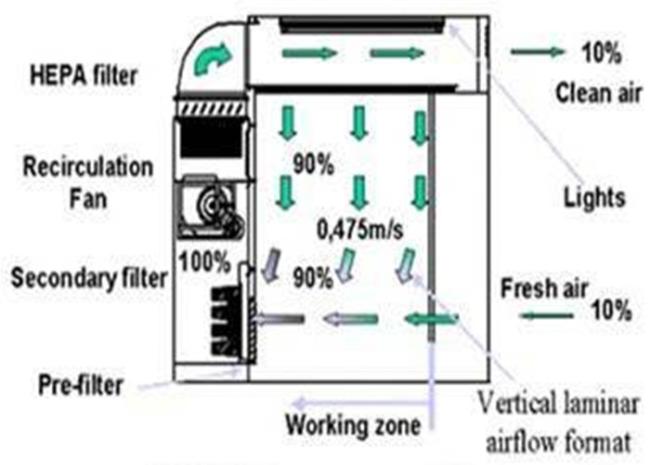

Weighing Booth also know as laminar flow booth, dispensing booth is for the pharmaceutical, microbiological research and scientific experiments and other places dedicated local purification equipment, which provides a vertical unidirectional airflow, some clean air circulation in the work area, partly discharged to the nearby area, so that the work area produce negative pressure to prevent cross contamination in order to ensure the high clean class level of the working area.

Using Environment and Conditions:
Temperature: 5 ℃ -40 ℃
Relative humidity: less than 85%
Atmospheric pressure: 86kPa-106kPa
Power supply: AC220V, single phase, 50Hz.

Parameter

Main Features

1. Unique designed air duct effectively controls the noise.
2. Smooth transitions of wall and ground can eliminate the blind angle.
3. Differential pressure gauge is equipped to real-time monitor the filters.
4. Intelligent control mode and alarm system ensure the reliability of running.
5. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
6. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
7. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.

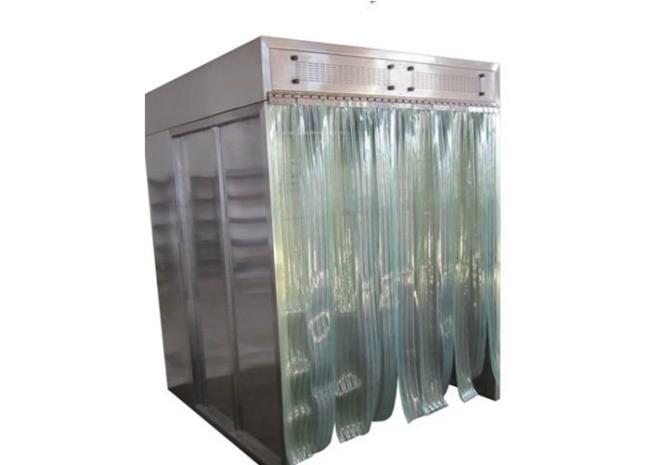

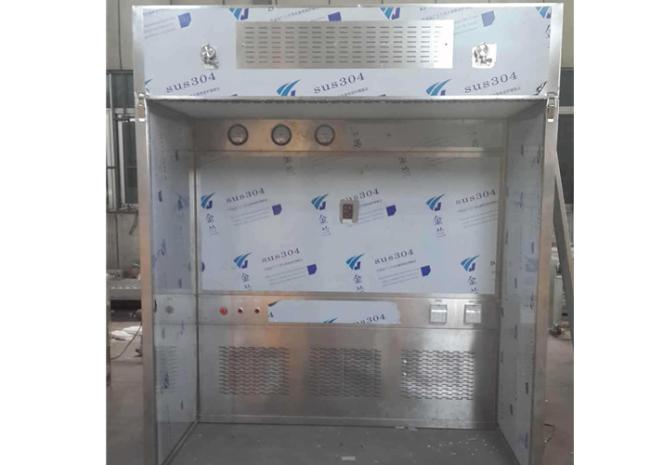

Display
