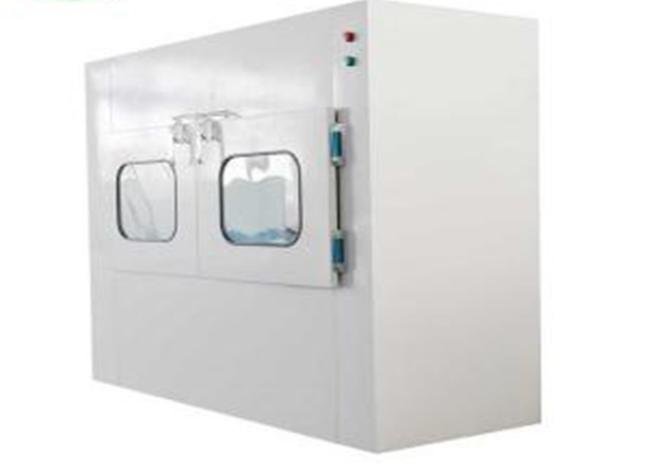

Double Door Clean Room Air Shower Pass Box Hepa / Pre Filter System Durable
Double Door Clean Room Air Shower Pass Box Hepa / Pre Fliter System Durable
Air Shower Pass Box Construction:
1. Robust construction qualifies the air shower pass box for the most demanding controlled environment applications. The unit is fully assembled and ready to install and operate when shipped. All components are designed for maximum chemical resistance and enhanced durability for a long service life.
2. Electrical interlock maintains cleanroom integrity by preventing both doors from being opened at the same time.
3. The inner box is constructed of SUS304 with an abrasion resistant oven-baked powder coated finish.
4. The pass box base surface is constructed of perforated stainless steel, making the work zone easy to clean.
5.Acrylic doors provide a clear view of the internal chamber.
Basic Parameters
| MODEL | KEL-ASPB650 |
|
External size(mm) (WXDXH) |
950X650X1500mm |
|
Internal size (mm) (WXDXH) |
650X650X650mm |
| Interlocker | Mechanical or electronic for your choose |
| SUS Nozzle | 4 PCS |
| Pre-filter (mm) | 525x275x17 |
| HEPA Filter(mm) | 484x484x69 |
| Air flow (m/s) | 1200m3/h |
| Fan power | 380V/50HZ 750w (1set) |
| Noise | <78 |
| HEPA Filter | 99.995% @0.3um |
| UV lamp | 1 pcs |
|
Material |
1:Entirety Sus201/304 (T=1.0/1.2mm) 2:External is steel with power coated, Internal is SUS304(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201 (T=1.0/1.2mm) |
