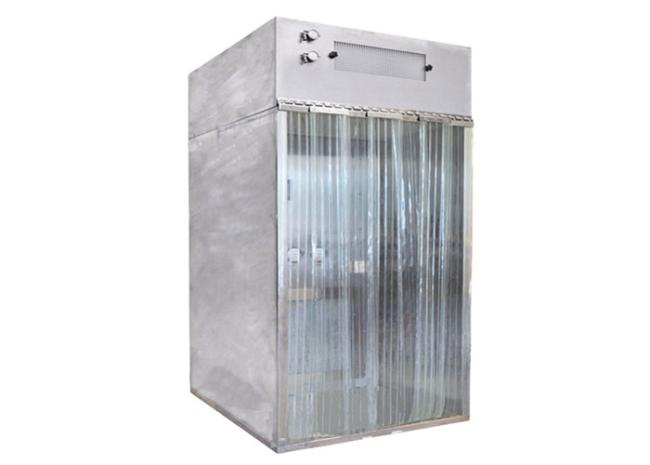

Customized Size PVC Curtain Door Weighing Booth / Dispensing Booth For GMP Clean Room
Customized Size PVC Curtain Door Weighing Booth/ Dispensing Booth For GMP Clean Room
Introduction
Weighing Booth, Dispensing Booth, Sampling Booth for GMP is a special local purification equipment that is used in the latest version of GMP for the production of sterile preparations. It provides a vertical unidirectional airflow, and some (80%-90%) clean air circulates in the working area. 10%-20% is discharged to the nearby area to create a negative pressure in the work area, prevent cross-contamination to ensure a high cleanliness environment in the work area. It is composed of work area, return air box and fan box cabinet, etc. The control panel is located on the front of work area, which can start the device, adjust air speed and working conditions. It has differential pressure gauges, buzzers and wind speed sensors, which can test the real-time resistance of filters, failure alarm and real-time speed in the work area.
Dispensing Booth Parameter
Customer's design is available.
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB1900 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000×2200×2650mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900×1900×2150mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.2-0.7m/s | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Intensity of illumination | ≥300 Lux | ||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | 75%@5um | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
