Automatic Blowing Entrance Clean Room Air Shower AC 220V 50HZ SUS 304
Automatic Blowing Clean Room Entrance Air Shower Room AC 220V 50HZ SUS 304 Cabinet
Description:
Cleanroom air shower is a kind of partial purifying equipment of strong universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.

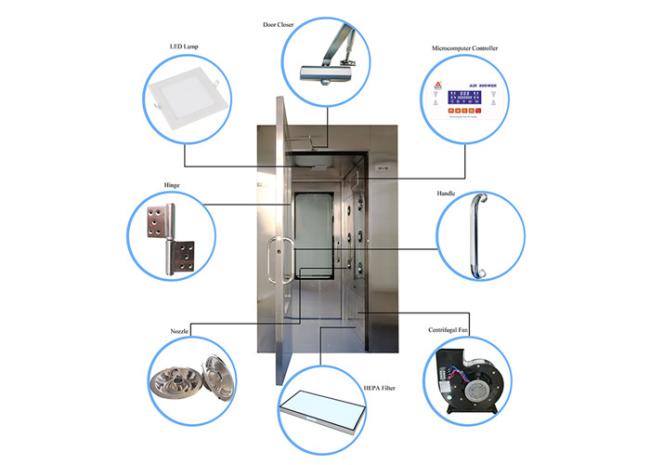

Detail
Principle
The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank.
After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower.
The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface.
The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Parameter
|
Model |
KEL-AS-S1000 |
KEL-AS-D1500 |
KEL-AS-T2000 |
|
|
|
External Dimension (W*D*H)(mm) |
1300*1000*2100 |
1300*1500*2100 |
1300*2000*2100 |
|
Internal Dimension (W*D*H)(mm) |
800*900*1950 |
800*1400*1950 |
800*1900*1950 |
|
|
Air Velocity(m/s) |
≥25 |
|||
|
HEPA Filter |
H14,570*570*70mm,2pcs |
H14,570*570*70mm,2pcs |
H14,570*570*70mm,4pcs |
|
|
Nozzle(pcs) |
12 |
18 |
24 |
|
|
Motor(pcs) |
2 |
2 |
4 |
|
|
Power(kw) |
2 |
2.5 |
4.5 |
|
|
Applicable Person |
1 |
2 |
3 |
|
|
Door Material |
Powder Coated Steel Plate/SUS304(Optional) |
|||
|
Passageway Material |
SUS304 |
|||
|
Case Material |
Full Powder Coated Steel Plate/Powder Coated Steel Plate Outside and SUS304 Inside/Full SUS304(Optional) |
|||
|
Power Supply |
AC380/220V,3 Phase,50/60Hz(Optional) |
|||
All products can be customized as actual requirements.
