Glass bottle linear ketchup filler / paste filling machine for plastic bottle
Glass bottle linear ketchup filler / paste filling machine for plastic bottle
Quick Detail:
1. Product: ketchup
2. Capacity: 1000-3000bph
3. Suitable bottle: 200ml-2500ml
4. Authentication: ISO,CE,SGS
Description:
QS Series Auto-Spraying Type Bottle Washer
The equipment is mainly suitable for washing plastic bottle, glass bottle. It is washing way is rotary spraying construction. The machine can continuously automatic finish taking in and out rotating, washing, droping and so on.
GFP Series Negative Pressure Filler
The filer can fill drink which does not contain gas, such as wine, fruit juice, health drink, soy sauce, vinegar. As the filler works in sealed condition and no pollution comes out. It is up to Foodstuff sanitation law. And it can accurately control liquid level, filling precision is high.
FXZ Series Screw Type Sealer
The sealer is for automatically sealing various sizes of bottle with plastic cap. It is perfect in performance, reliable in operation and easy in maintenance. So it is widely used in automatic packing lines for various kinds of wine, food, drink. Medicine and so on. It is one of the most ideal screw type automatic sealing equipment.
Applications:
This filling machine is widely used to filling many kinds of viscid liquid into glass bottle, tin and can, such as the paste and sauce
Specifications:
|
No. |
Items |
Performance |
|
01 |
Machine dimension (L×W×H) |
2000mm×750mm×1500mm |
|
02 |
No. of filling head |
4/6/8/10/12/16 |
|
03 |
Suitable bottle size (abnormal bottles can also be valid) |
|
|
Diameter |
Φ30mm~Φ100mm |
|
|
Height |
50mm~250mm |
|
|
04 |
Diameter of bottle mouth |
≥φ18mm |
|
05 |
Suitable filling range |
200ml,400ml |
|
06 |
Production capacity |
400-3000 bottles/hour |
|
07 |
Error range |
±1% |
|
08 |
Power supply |
AC 220V; 50Hz |
|
09 |
Power |
1.5-4 Kw (power is twice than normal filler) |
|
10 |
Pneumatic(air-operated)source |
0.6 Mpa clean and stable compressed air |
Competitive Advantage:
1. Automatic bottling sauce liquid filling machine is developed by our company, suitable for filling a series of high concentrations of fluids. It is through air cylinder to drive a piston and transfer--valve’s three contacts principle to extract and to split out the highly concentrated material, and by magnetism-reed switch to control air cylinder’s travel, then can adjust the filling volume.
2. This device of automatic bottling sauce liquid filling machine is simple and reasonable in structure, easy to understand, with high accuracy.
3. Pneumatic part of automatic bottling sauce liquid filling machine is adopted Germany FESTO and Taiwan AirTac pneumatic components.
4. Filling volume and filling speed of automatic bottling sauce liquid filling machine can be arbitrarily adjusted with high filling accuracy.

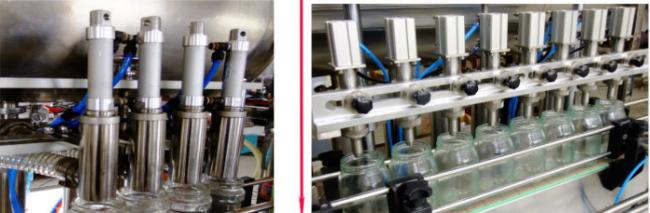

5. Filling heads of automatic bottling sauce liquid filling machine is adopted anti-drip, anti- drawing and lifting devices
