PET Bottle Rinsing Filling Capping Machine
Juice / Ice Tea Monoblock PET Bottle Rinsing Filling Capping Machine 0.25L - 2L
Quick Detail:
1. 304 stainless steel
2. Bottle Rinsing-Filling-Capping 3-in-1
3. adopts hot filling technology
4. long lifetime
Description:

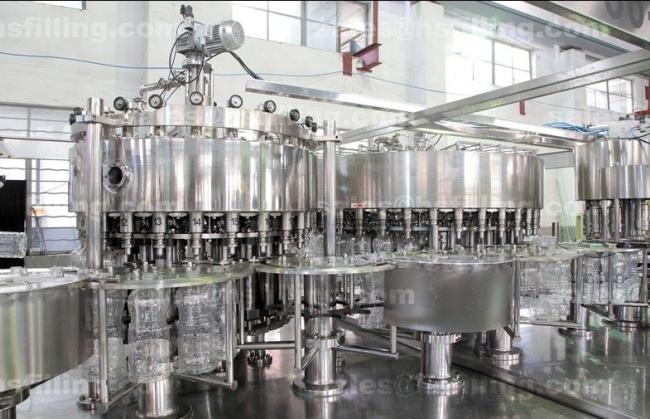

3-in-1 filling mono-block juice filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea,milk etc products. it is ideal equipments of juice bottling plant.
The whole machine adopts hot filling technology, and equipped CIP cleaning system.
The liquid level is well controlled in ±2mm.
The filling Temperature range Max.90℃.
Applications:
Bottle Rinsing, bottle filling, Bottle capping machine 3-in-1; It used in juice bottling plant, milk drinks, syrup products etc.
Specifications:
Model | Number of washing filling and capping | Production capacity | Applicable bottle specifications (mm) | Power(kw) | Dimension(mm) |
RCGF14/12/5 | 14, 12, 5 | 2000-3000 | 0.25L-2L | 3.58 | 2100x1400x2500 |
RCGF18/18/6 | 18, 18, 6 | 4000-6000 | 7.61 | 2460x1720x2650 | |
RCGF24/24/8 | 24, 24, 8 | 6000-8000 | 8.2 | 3100x2100x2650 | |
RCGF32/32/8 | 32, 32, 8 | 10000-12000 | 9.18 | 3500x2500x2650 | |
RCGF40/40/10 | 40, 40, 10 | 13000-15000 | 10.28 | 4600x1800x2650 | |
RCGF50/50/12 | 50, 50, 12 | 16000-18000 | 11.28 | 5200x4500x3400 | |
RCGF60/60/15 | 60, 60, 15 | 20000-22000 | 11.28 | 6500x4500x3400 |
Competitive Advantage:
20 year experience, durable quality with competitive price.
