Concentrate Juice Filling Machine Automatic PET / Glass Bottle
Concentrate Juice Filling Machine Automatic PET / Glass Bottle
concentrate juice bottle filling machine manufacturer brif:
--rinser filler capper hot filling
--.80-90 degree filling
---concentrate juice filling or pulpy juice filling
---0.25-2L PET or glass bottle hot juice filling machinery
---bottle lid can be plastic screw cap or twist-off cap etc
---we provide full production line from water treatment system, juice mixing system, washing filling capping system, shrink sleeve labeling machine , code printer to bottle group wrapping machine
Concentrate Juice Filling Machine Technicial Data:
| Model | Number of washing filling and capping | Production capacity Bottle per hour(0.5L) |
Applicable bottle specifications (mm) | Power(kw) | Dimension(mm) |
| RCGF14/12/5 | 14, 12, 5 | 2000-3000 | 0.25L-2L 50-108 mm H=170-340mm |
3.58 | 2100x1400x2500 |
| RCGF18/18/6 | 18, 18, 6 | 4000-6000 | 7.61 | 2460x1720x2650 | |
| RCGF24/24/8 | 24, 24, 8 | 6000-8000 | 8.2 | 3100x2100x2650 | |
| RCGF32/32/8 | 32, 32, 8 | 10000-12000 | 9.18 | 3500x2500x2650 | |
| RCGF40/40/10 | 40, 40, 10 | 13000-15000 | 10.28 | 4600x1800x2650 | |
| RCGF50/50/12 | 50, 50, 12 | 16000-18000 | 11.28 | 5200x4500x3400 | |
| RCGF60/60/15 | 60, 60, 15 | 20000-22000 | 11.28 | 6500x4500x3400 |
| OUR SERVICES |
| Before sales: the buyer must cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations. During build: After sales: |

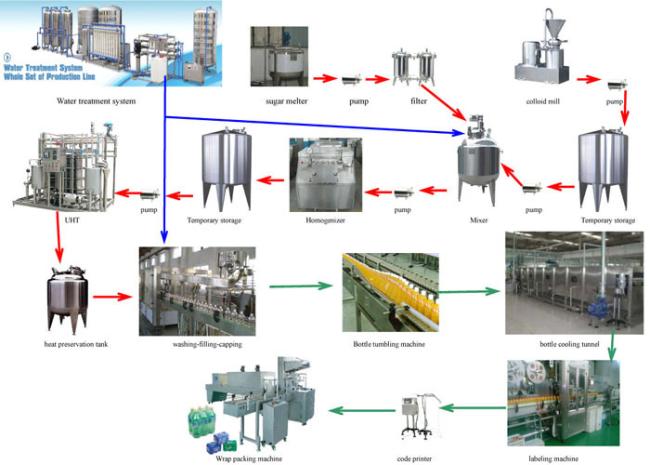

juice production line/juice bottling line flow chart for reference
