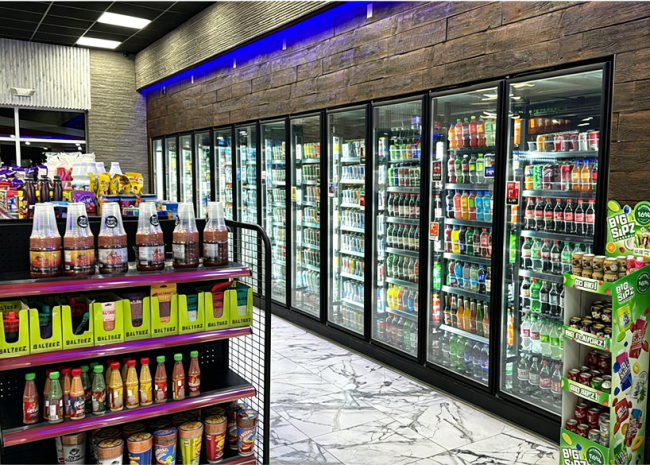

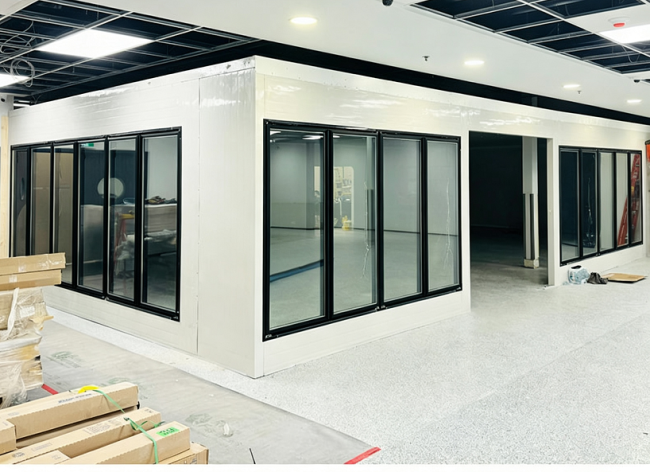

Commercial Pu Panel Display Glass Door Cold Storage Chamber Room Walk In Freezer For Supermarket
Features of glass door Cold storage room:
1. Easy installation, each step we will provide instruction to guide you how to do it.
2. Perfect control, all the glass door walk in freezer cold storage has independent control panel;
3. System with self-diagnosis and can automatically adjust according to the condition of the environmental temperature and humidity and the temperature of cold room.
4. Strong Construction: Built to withstand daily use in busy retail environments.
5. Several standard dimension for option:
| Model No. | Dimension-mm | Temperature | Item Name | Panel thickness |
| LG-4HB | 2900*1800*2150 | 0-10℃/-18 to -22℃ | 4 glass doors walk in refrigerator | 100mm/150mm |
| LG-5HB | 3600*1800*2150 | 0-10℃/-18 to -22℃ | 5 glass doors walk in refrigerator | 100mm/150mm |
| LG-6HB | 4300*1800*2150 | 0-10℃/-18 to -22℃ | 6 glass doors walk in refrigerator | 100mm/150mm |
| LG-7HB | 4980*1800*2150 | 0-10℃/-18 to -22℃ | 7 glass doors walk in refrigerator | 100mm/150mm |
| LG-8HB | 5680*1800*2150 | 0-10℃/-18 to -22℃ | 8 glass doors walk in refrigerator | 100mm/150mm |
| LG-9HB | 6380*1800*2150 | 0-10℃/-18 to -22℃ | 9 glass doors walk in refrigerator | 100mm/150mm |
Parts of display walk in refrigerator refrigeration
- Cam lock PU panels. Perfect to keep the temperature due to high density PU panel, has different thickness to meet different temperature requirement.

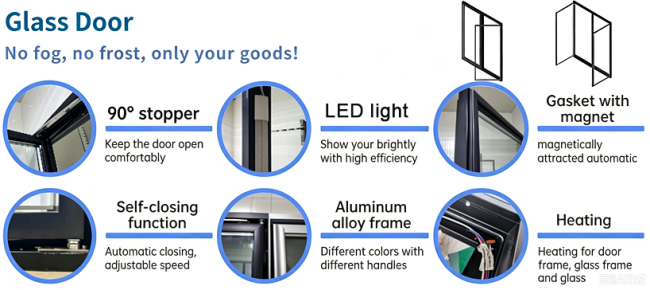

2.Triple layer heater Glass doors.
Each glass door cold storage has glass doors and pu panel door. All of them has self close function.
3.Refrigeration system

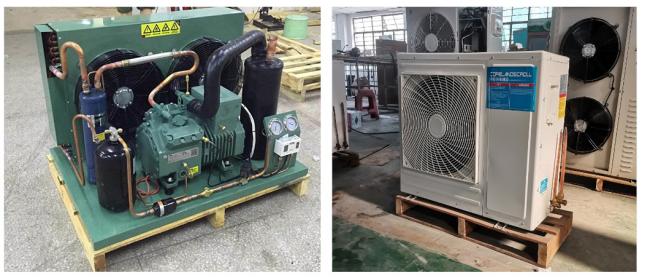

Condensing unit.
(1) Condensing unit: China/USA/Gemany brand for option.
