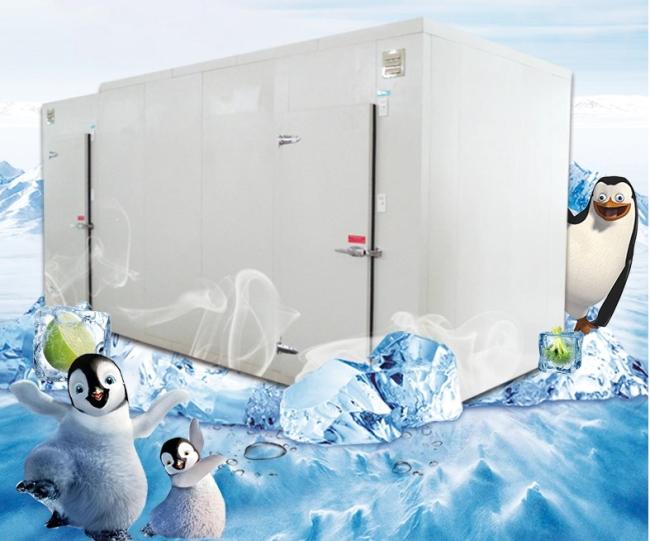

-18 Degree Freezer Cold Storage Room For Food Meat Fish With Sliding Door
-18 degree freezer cold storage food meat fish with Sliding Door Cold Room Door For industry and Mall
Cold Room Features
1. Modular insulation panel with cam lock, easy to install, low installation cost 2. Refrigeration: R22, R404A 3. Temperature Range: From - 35°C To + 55°C 4. Room Size: According to the customer request design 5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof 6. Branded refrigeration fittings 7. Long life cycle 8. Full automatic control with easy operation and management 9. Defrost Type: Electric defrosting, Water defrosting 10. High efficiency and energy saving design
PU sandwich panel Thickness
Cold room working temperature
50mm
+5~ 25℃
75mm
-5~25℃
100mm
-15~25℃
150mm
-25~25℃
200mm
-50~25℃
| Product Description | |
| Insulation Material: | polyurethane sandwich insulation panel |
| Insulation Material Thickness: | 50mm,100mm, 150mm, 200mm, 250mm |
| Insulation Material Density: | ≥42Kg per cubic metre |
| Stell Plate Thickness: | 0.5mm |
| Insulation Material Fire Rating: | B2 |
| Connection: | Concave and convex chamfer CAM lock hook connection |
| Corners Connection: | L type angle panel |
| Refrigeration Equipment: | Depend on clients Or We design for clients |
| Equipment Configuration: | Condenser, Reservoirs, Gas-Liquid Separator, Oil Separator, H/L Pressure Controller, Condensing Pressure Controller, liquid Sight Glass, Solenoid Valve, Filter, H/L Pressure Gauge, Oil Pressure Gauge, Junction Box |
| Classification Temp | |
| 0 °C ~ + 22°C: | Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room |
| -5 °C ~ + 5 °C: | Pre-Cooling, Keep Fresh |
| -10 °C ~ -20 °C: | Freezer Storage |
| -25 °C ~ -30 °C: | Low Temperature Storage, Quick-Freeze |
| -35 °C ~ -40 °C: | Blast Freezer, Quick-Freeze |
Cold room -specification
| Dimension | 3000mm*2600mm*2300mm |
| Panel | polyurethane insulation panel,43kg/m3, fire retardant |
| Foaming material | BASF |
| Panel thickness | 100mm |
| Steel cover | painted galvanized steel |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | double handles convex door with glass viewer |
| Temp.of room | -18 degree C |
| Purpose of cold room | storage of meat and fish |
| Refrigeration unit | Copeland etc |
| Refrigeration type | air cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor use/ outdoor use |
| Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ~60Hz, 400V/60Hz optional
|
